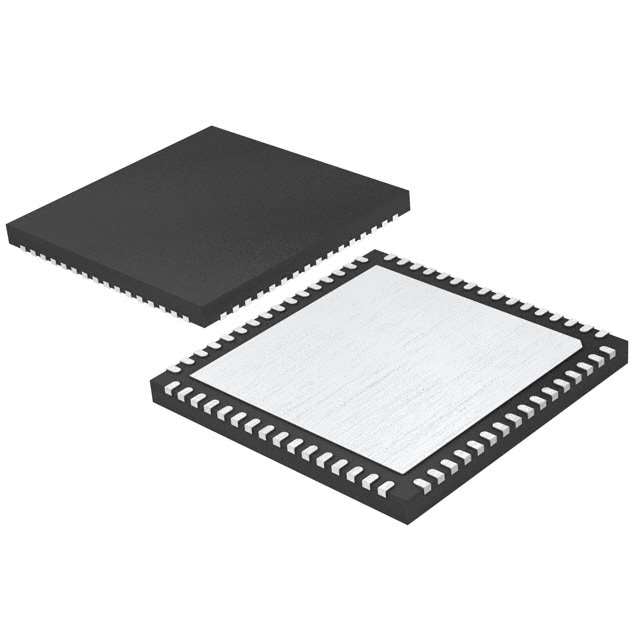

LMK05028RGCT TI Clock Generator | 64-VQFN (9x9) | 2 PLL, 14 Outputs, 0.2ps RMS Jitter

Product Overview

The LMK05028RGCT is a high-performance clock generator from Texas Instruments, designed for demanding applications requiring ultra-low jitter and flexible frequency synthesis. Housed in a compact 64-VQFN (9x9 mm) package, it integrates two independent phase-locked loops (PLLs) with voltage-controlled oscillators (VCOs) to generate up to 14 differential or LVCMOS clock outputs. The device supports frequencies from 1 Hz to 2.5 GHz, with typical RMS jitter as low as 0.2 ps (12 kHz to 20 MHz). It operates from a single 3.3V supply and includes advanced features like hitless reference switching, digital holdover, and programmable loop bandwidth.

Detailed Technical Specifications

Key Features

• Ultra-low jitter: 0.2 ps RMS typical (12 kHz–20 MHz)
• Two independent PLLs with integrated VCOs
• 14 programmable outputs supporting multiple formats
• Hitless reference switching with automatic holdover
• Digital holdover for frequency stability during reference loss
• Programmable loop bandwidth for phase noise optimization
• I2C/SPI interface for configuration
• Single 3.3V supply operation
• Small 64-VQFN (9x9 mm) package

Target Applications

• 5G base stations (e.g., Massive MIMO, gNodeB)
• Wireless infrastructure (e.g., small cells, remote radio heads)
• Data center switches and routers (e.g., 400G Ethernet)
• Test and measurement equipment (e.g., oscilloscopes, signal generators)
• Broadcast video (e.g., 4K/8K video routers)
• Industrial automation (e.g., precision timing for PLCs)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LMK05028RGCT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

LMK05028RGCT 是德州儀器（TI）推出的一款高性能時鐘生成器，專為需要超低抖動和靈活頻率合成的苛刻應用而設計。它採用緊湊的 64-VQFN（9x9 mm）封裝，集成兩個獨立的鎖相環（PLL）和壓控振盪器（VCO），可生成多達 14 個差分或 LVCMOS 時鐘輸出。器件支持 1 Hz 至 2.5 GHz 的頻率範圍，典型 RMS 抖動低至 0.2 ps（12 kHz 至 20 MHz）。它由單一 3.3V 電源供電，並包含無中斷參考切換、數字保持和可編程環路帶寬等先進功能。

詳細技術參數

核心特性

• 超低抖動：典型 RMS 抖動 0.2 ps（12 kHz–20 MHz）
• 兩個獨立 PLL，集成 VCO
• 14 個可編程輸出，支持多種格式
• 無中斷參考切換，帶自動保持
• 數字保持功能，在參考丟失時保持頻率穩定
• 可編程環路帶寬，優化相位噪聲
• I2C/SPI 接口用於配置
• 單一 3.3V 電源供電
• 小型 64-VQFN（9x9 mm）封裝

典型應用場景

• 5G 基站（例如大規模 MIMO、gNodeB）
• 無線基礎設施（例如小基站、遠程射頻頭）
• 數據中心交換機和路由器（例如 400G 以太網）
• 測試與測量設備（例如示波器、信號發生器）
• 廣播視頻（例如 4K/8K 視頻路由器）
• 工業自動化（例如 PLC 的精確定時）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 LMK05028RGCT 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
