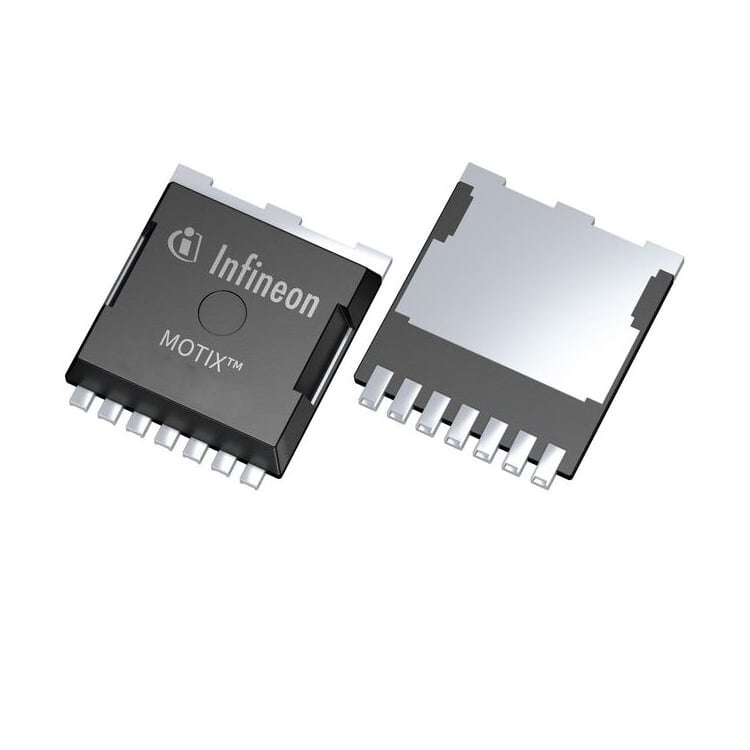

BTN9970LVAUMA1 Infineon Motor Driver IC | PG-HSOF-7-1 | 40A, 28V

Product Overview

The BTN9970LVAUMA1 is a high-current, fully integrated H-bridge motor driver IC from Infineon, designed for automotive and industrial applications. It integrates a p-channel high-side MOSFET and an n-channel low-side MOSFET in a PG-HSOF-7-1 package, enabling bidirectional control of DC motors up to 40A peak current. The device operates from a supply voltage range of 5.5V to 28V, making it suitable for 12V and 24V systems. With built-in protection features such as overcurrent, overtemperature, and undervoltage lockout, the BTN9970LVAUMA1 ensures robust and reliable motor control.

Detailed Technical Specifications

Key Features

• Fully integrated H-bridge with low RDS(on) MOSFETs
• High peak current capability up to 40A
• Wide supply voltage range (5.5V – 28V)
• PWM frequency up to 25 kHz for quiet operation
• Comprehensive protection: overcurrent, overtemperature, UVLO, and cross-conduction prevention
• Small footprint PG-HSOF-7-1 package for space-constrained designs
• 3.3V and 5V logic compatible
• Automotive qualified (AEC-Q100)

Target Applications

• Automotive: Electric power steering (EPS), engine cooling fans, fuel pumps, windshield wipers, and seat adjustment motors
• Industrial: Robotics, conveyor belts, and automated guided vehicles (AGVs)
• Consumer: Power tools, garden equipment, and home appliances
• Specific examples: 5G base station cooling fans, dashboard HVAC actuators, and electric parking brakes

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for BTN9970LVAUMA1. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
