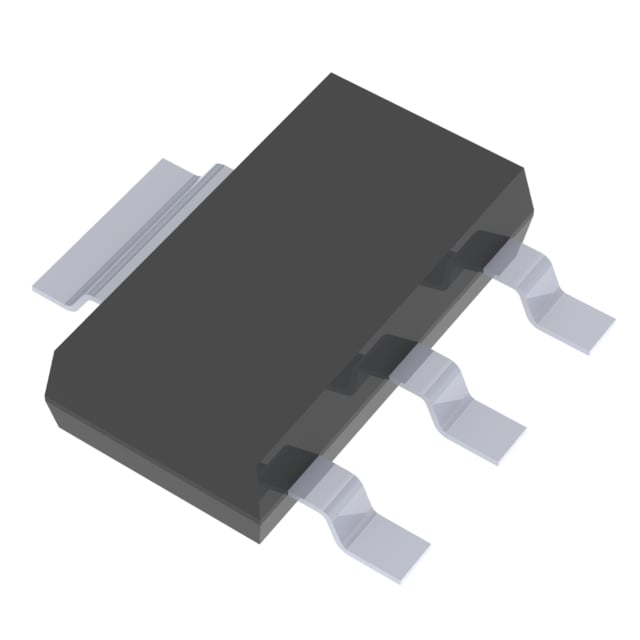

BTS4142NHUMA1 Infineon Power Switch | PG-SOT223-4 | 200mOhm, 0.7A

Product Overview

The BTS4142NHUMA1 is a high-side power switch from Infineon, designed for automotive and industrial applications. It integrates a vertical N-channel power MOSFET with charge pump and diagnostic features in a compact PG-SOT223-4 package. The device provides protected high-side switching for resistive, inductive, and capacitive loads, with a typical on-state resistance of 200mΩ and a nominal load current of 0.7A. It operates over a wide supply voltage range from 5V to 34V, making it suitable for 12V and 24V systems.

Detailed Technical Specifications

Key Features

• High-side switch with integrated N-channel power MOSFET
• Low on-state resistance (200mΩ typical)
• Wide input voltage range (5V to 34V)
• Diagnostic feedback for open load, overtemperature, and short circuit
• Protection against overload, overtemperature, overvoltage, and ESD
• Green product (RoHS compliant)
• AEC-Q100 qualified for automotive applications

Target Applications

• Automotive body control modules (e.g., lighting, wiper, seat control)
• Industrial PLC output stages
• 5G base station power distribution
• Dashboard and infotainment systems
• Heater and actuator control in HVAC systems

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for BTS4142NHUMA1. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

BTS4142NHUMA1 是英飛凌推出的一款高側電源開關，專為汽車和工業應用設計。它將垂直 N 溝道功率 MOSFET 與電荷泵和診斷功能集成在緊湊的 PG-SOT223-4 封裝中。該器件為電阻性、電感性和電容性負載提供受保護的高側開關，典型導通電阻為 200mΩ，標稱負載電流為 0.7A。它可在 5V 至 34V 的寬電源電壓範圍內工作，適用於 12V 和 24V 系統。

詳細技術參數

核心特性

• 集成 N 溝道功率 MOSFET 的高側開關
• 低導通電阻（典型值 200mΩ）
• 寬輸入電壓範圍（5V 至 34V）
• 開路負載、過溫和短路的診斷反饋
• 過載、過溫、過壓和 ESD 保護
• 綠色產品（符合 RoHS 標準）
• 通過 AEC-Q100 認證，適用於汽車應用

典型應用場景

• 汽車車身控制模塊（例如照明、雨刮器、座椅控制）
• 工業 PLC 輸出級
• 5G 基站電源分配
• 儀表板和信息娛樂系統
• HVAC 系統中的加熱器和執行器控制

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 BTS4142NHUMA1 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
