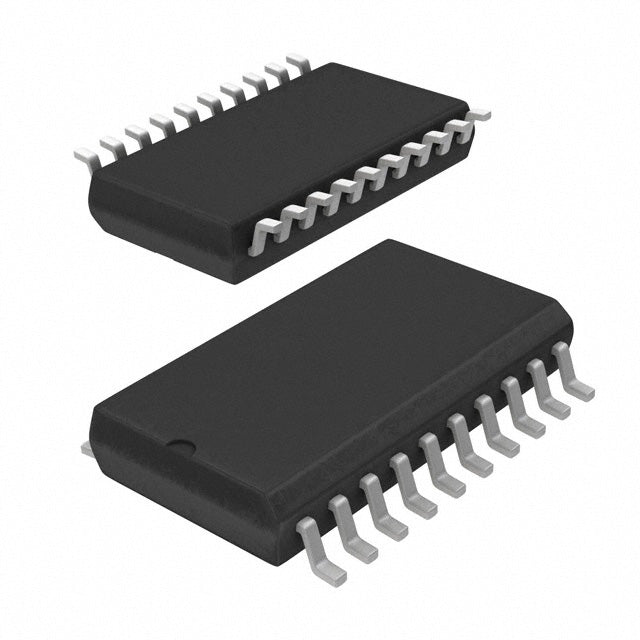

BTS5240GXUMA1 Infineon Power Switch | PG-DSO-20-21 | 2-Channel, 1.5A, 5V-34V

Product Overview

The BTS5240GXUMA1 is a dual-channel high-side power switch from Infineon's PROFET™ family, designed for automotive and industrial applications. It integrates two vertical N-channel power MOSFETs with charge pump and logic circuitry in a single PG-DSO-20-21 package. The device provides protected high-side switching for resistive, inductive, and capacitive loads, with a nominal load current of 1.5A per channel. It operates over a wide supply voltage range of 5V to 34V, making it suitable for 12V and 24V systems. Key protection features include overcurrent, overtemperature, and short-circuit protection, as well as load current sensing and diagnostic feedback via a status pin.

Detailed Technical Specifications

Key Features

• Dual-channel high-side switch with integrated power MOSFETs
• Low standby current for battery-powered applications
• Comprehensive protection: overcurrent, overtemperature, short-circuit, and load dump
• Diagnostic feedback via status pin
• Wide input voltage range (5V-34V)
• RoHS compliant and AEC-Q100 qualified

Target Applications

• Automotive body control modules (e.g., lighting, wiper motors, seat adjustment)
• Industrial PLC output modules
• 5G base station power distribution
• Dashboard and infotainment systems
• Battery management systems

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for BTS5240GXUMA1. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
