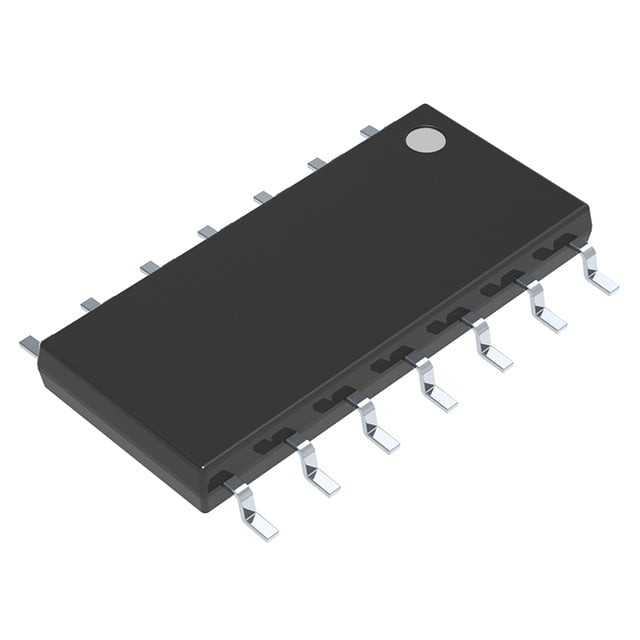

BTS70802EPZXUMA1 Infineon Power Switch | PG-TDSO-14-11 | 70mΩ, 2A

Product Overview

The BTS70802EPZXUMA1 is a high-side power switch from Infineon's PROFET™+2 family, designed for automotive and industrial applications. It integrates a vertical N-channel power MOSFET with charge pump and current sense, providing protected and diagnostic-enabled power distribution. The device is housed in a compact PG-TDSO-14-11 package, offering a 70mΩ typical on-resistance and a 2A nominal load current capability. It operates over a wide supply voltage range of 3.1V to 28V, making it suitable for 12V and 24V board nets.

Detailed Technical Specifications

Key Features

• PROFET™+2 technology for robust protection
• Low standby current for battery-friendly operation
• Integrated current sense for real-time diagnostics
• Wide input voltage range supporting 12V and 24V systems
• Reverse battery protection with external resistor
• ESD protection up to 4 kV (HBM)
• Green product (RoHS compliant)

Target Applications

• Automotive body control modules (e.g., door locks, window lifts, seat adjustment)
• Industrial PLC output stages
• 5G base station power distribution
• LED lighting control in automotive dashboards
• Heater and fan control in HVAC systems
