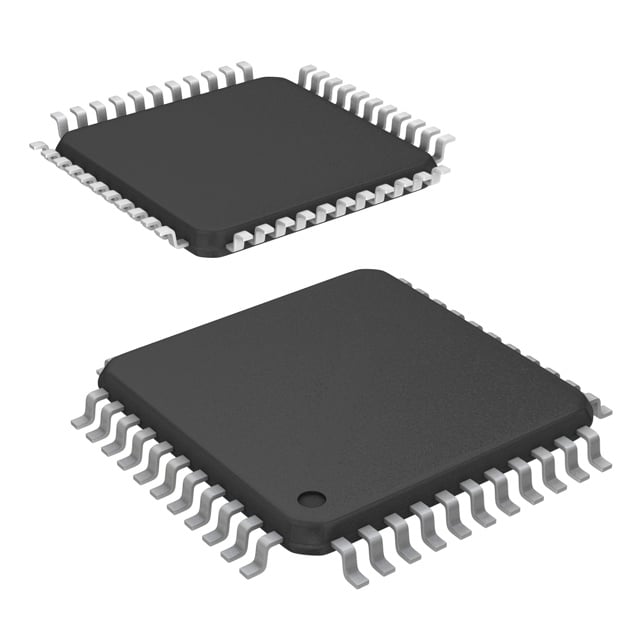

CY8C29566-24AXIT Infineon MCU | 44-TQFP（10X10） | 24MHz, 32KB Flash

Product Overview

The CY8C29566-24AXIT is a high-performance 8-bit microcontroller from Infineon's M8C family, featuring a 24MHz CPU, 32KB flash memory, and 2KB SRAM. Housed in a compact 44-TQFP (10x10mm) package, it integrates programmable analog and digital peripherals, making it ideal for embedded control applications.

Detailed Technical Specifications

Key Features

• 24 MHz M8C CPU with low power consumption
• 32 KB flash with 2 KB SRAM
• Programmable analog blocks: ADC, DAC, comparators
• Digital blocks: PWM, timers, counters
• I2C, SPI, UART serial communication
• Wide operating voltage range (3.0V - 5.25V)
• Industrial temperature range

Target Applications

• Industrial control systems (e.g., PLCs, motor control)
• Automotive electronics (e.g., dashboard controllers, sensor interfaces)
• Consumer electronics (e.g., smart home devices, remote controls)
• Medical devices (e.g., patient monitoring, diagnostic equipment)
• 5G base station power management and monitoring

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for CY8C29566-24AXIT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

CY8C29566-24AXIT 是英飛凌 M8C 系列的高性能 8 位微控制器，配備 24MHz CPU、32KB 快閃記憶體和 2KB SRAM。採用緊湊的 44-TQFP（10x10mm）封裝，整合可編程類比和數位周邊，非常適合嵌入式控制應用。

詳細技術參數

核心特性

• 24 MHz M8C CPU，低功耗
• 32 KB 快閃記憶體，2 KB SRAM
• 可編程類比模組：ADC、DAC、比較器
• 數位模組：PWM、計時器、計數器
• I2C、SPI、UART 串列通訊
• 寬工作電壓範圍 (3.0V - 5.25V)
• 工業級溫度範圍

典型應用場景

• 工業控制系統（例如 PLC、馬達控制）
• 汽車電子（例如儀表板控制器、感測器介面）
• 消費電子（例如智慧家居設備、遙控器）
• 醫療設備（例如病患監護、診斷設備）
• 5G 基地台電源管理與監控

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 CY8C29566-24AXIT 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
