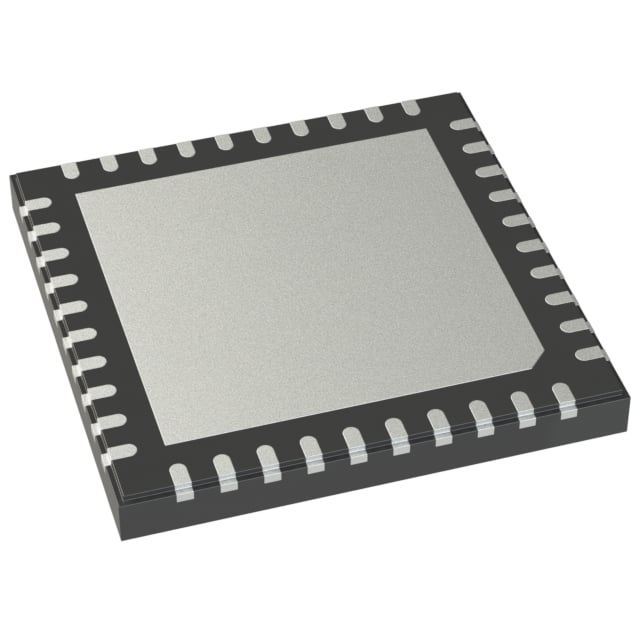

CY8C4146LQS-S273 Infineon MCU | 40-QFN (6x6) | ARM Cortex-M0+, 64KB Flash, 8KB SRAM

Product Overview

The CY8C4146LQS-S273 is a high-performance 32-bit microcontroller from Infineon's PSoC 4 family, featuring an ARM Cortex-M0+ core. It is designed for embedded control applications requiring low power consumption and rich analog/digital peripherals. The device comes in a compact 40-pin QFN package (6x6 mm) and offers 64 KB of flash memory and 8 KB of SRAM. Its integrated programmable analog blocks, capacitive sensing (CapSense), and serial communication interfaces make it ideal for human-machine interface (HMI), sensor interfacing, and industrial control.

Detailed Technical Specifications

Key Features

• ARM Cortex-M0+ core with single-cycle multiply and up to 48 MHz operation
• Integrated programmable analog blocks for signal conditioning and sensor interfacing
• Capacitive sensing (CapSense) with noise immunity and liquid tolerance
• Low power modes: Sleep, Deep Sleep, and Hibernate with wake-up from GPIO or timer
• Wide operating voltage range (1.71 V to 5.5 V) for battery or industrial applications
• Rich serial communication: I2C, SPI, UART with FIFO and DMA support
• Up to 36 GPIOs with programmable drive strength and slew rate
• On-chip debug and programming via SWD interface

Target Applications

• 5G base station: Power supply sequencing and monitoring, fan control
• Automotive dashboard: Capacitive touch buttons and sliders, ambient light sensing
• Industrial sensors: Temperature, pressure, and flow sensor signal conditioning
• Smart home: Touch-enabled light switches, thermostats, and smart locks
• Medical devices: Portable health monitors, infusion pump control
• Consumer electronics: Wearable fitness trackers, gaming peripherals

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for CY8C4146LQS-S273. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

CY8C4146LQS-S273 是英飛凌 PSoC 4 系列的高性能 32 位微控制器，採用 ARM Cortex-M0+ 內核。專為需要低功耗和豐富模擬/數字外設的嵌入式控制應用而設計。該器件採用緊湊的 40 引腳 QFN 封裝（6x6 mm），提供 64 KB 閃存和 8 KB SRAM。其集成的可編程模擬模塊、電容感應（CapSense）和串行通信接口使其非常適合人機界面（HMI）、傳感器接口和工業控制。

詳細技術參數

核心特性

• ARM Cortex-M0+ 內核，單週期乘法，最高 48 MHz 操作
• 集成可編程模擬模塊，用於信號調理和傳感器接口
• 電容感應（CapSense），具有抗噪性和液體耐受性
• 低功耗模式：睡眠、深度睡眠和休眠，可通過 GPIO 或定時器喚醒
• 寬工作電壓範圍（1.71 V 至 5.5 V），適用於電池或工業應用
• 豐富的串行通信：I2C、SPI、UART，支持 FIFO 和 DMA
• 最多 36 個 GPIO，可編程驅動強度和壓擺率
• 通過 SWD 接口進行片上調試和編程

典型應用場景

• 5G 基站：電源排序和監控、風扇控制
• 汽車儀表盤：電容式觸摸按鈕和滑條、環境光感應
• 工業傳感器：溫度、壓力和流量傳感器信號調理
• 智能家居：觸控燈開關、恆溫器和智能鎖
• 醫療設備：便攜式健康監測儀、輸液泵控制
• 消費電子：可穿戴健身追踪器、遊戲外設

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 CY8C4146LQS-S273 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
