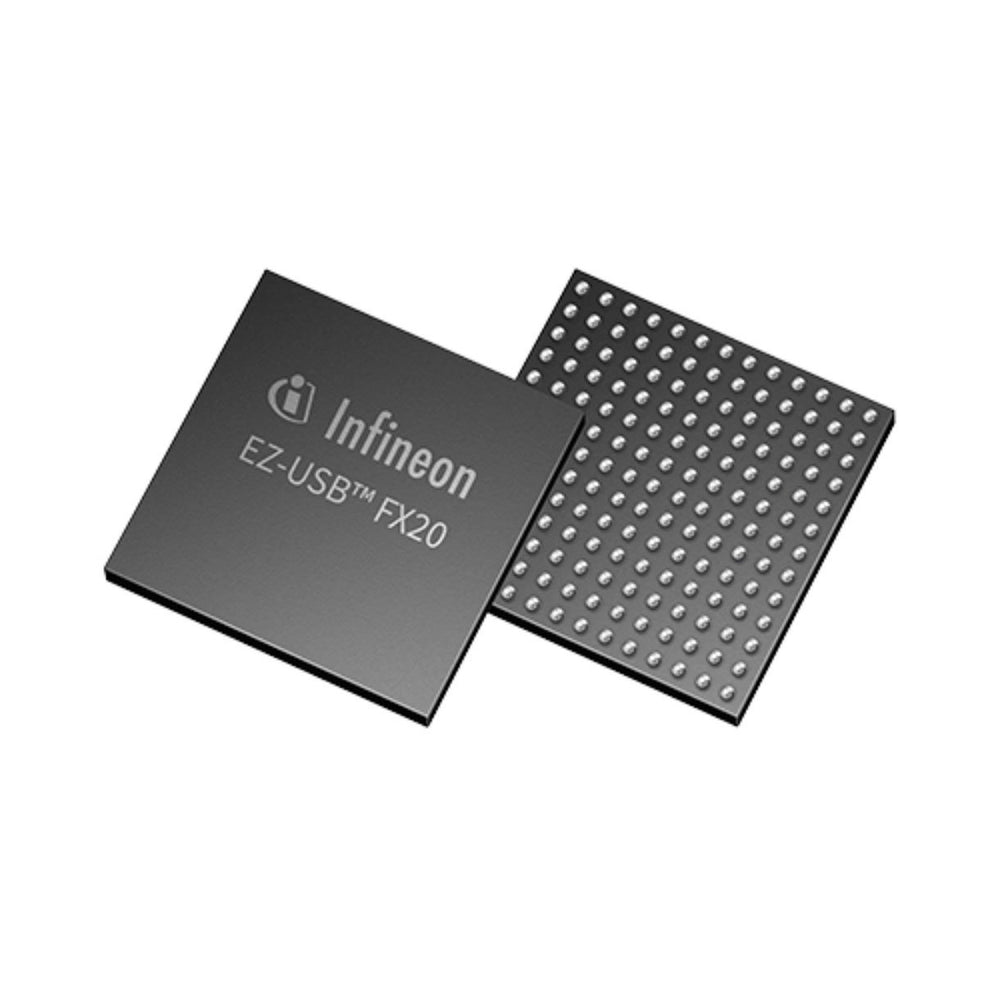

CYUSB4024FCAXIXQMA1 Infineon USB Hub Controller | 169-FBGA(10X10) | USB 3.2 Gen1, 4-Port

Product Overview

The CYUSB4024FCAXIXQMA1 is a high-performance USB 3.2 Gen1 hub controller from Infineon, designed for embedded systems requiring reliable USB expansion. It supports up to 4 downstream ports with SuperSpeed (5 Gbps), Hi-Speed, Full-Speed, and Low-Speed data rates. Housed in a compact 169-FBGA (10x10 mm) package, it offers advanced power management, including individual port power control and overcurrent protection. The device is compliant with USB 3.2 Gen1, USB 2.0, and USB 1.1 standards, making it suitable for a wide range of applications from consumer electronics to industrial automation.

Detailed Technical Specifications

Key Features

• USB 3.2 Gen1 SuperSpeed (5 Gbps) data rate
• 4 downstream ports with individual power control
• Integrated overcurrent protection
• Battery charging support (BC1.2)
• Low power consumption with multiple power states
• Compact 169-FBGA package (10x10 mm)
• Wide operating temperature range (-40°C to +85°C)
• Compatible with USB 2.0 and USB 1.1 devices

Target Applications

• 5G base stations: USB expansion for monitoring and control modules
• Automotive dashboards: Connecting infotainment systems and diagnostic ports
• Industrial PCs: Adding multiple USB peripherals for data acquisition
• Medical devices: Reliable USB connectivity for imaging and patient monitoring
• Consumer electronics: Docking stations, monitors with USB hubs

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for CYUSB4024FCAXIXQMA1. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

CYUSB4024FCAXIXQMA1 是英飛凌推出的一款高性能 USB 3.2 Gen1 集線器控制器，專為需要可靠 USB 擴展的嵌入式系統設計。它支持最多 4 個下行端口，提供 SuperSpeed（5 Gbps）、Hi-Speed、Full-Speed 和 Low-Speed 數據速率。採用緊湊的 169-FBGA（10x10 mm）封裝，具備先進的電源管理功能，包括單獨端口電源控制和過流保護。該器件符合 USB 3.2 Gen1、USB 2.0 和 USB 1.1 標準，適用於從消費電子到工業自動化的廣泛應用。

詳細技術參數

核心特性

• USB 3.2 Gen1 SuperSpeed (5 Gbps) 數據速率
• 4 個下行端口，帶獨立電源控制
• 集成過流保護
• 支持電池充電 (BC1.2)
• 低功耗，多種電源狀態
• 緊湊的 169-FBGA 封裝 (10x10 mm)
• 寬工作溫度範圍 (-40°C 至 +85°C)
• 兼容 USB 2.0 和 USB 1.1 設備

典型應用場景

• 5G 基站：用於監控和控制模塊的 USB 擴展
• 汽車儀表板：連接信息娛樂系統和診斷端口
• 工業電腦：添加多個 USB 外設進行數據採集
• 醫療設備：為成像和病人監護提供可靠的 USB 連接
• 消費電子：擴展塢、帶 USB 集線器的顯示器

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 CYUSB4024FCAXIXQMA1 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
