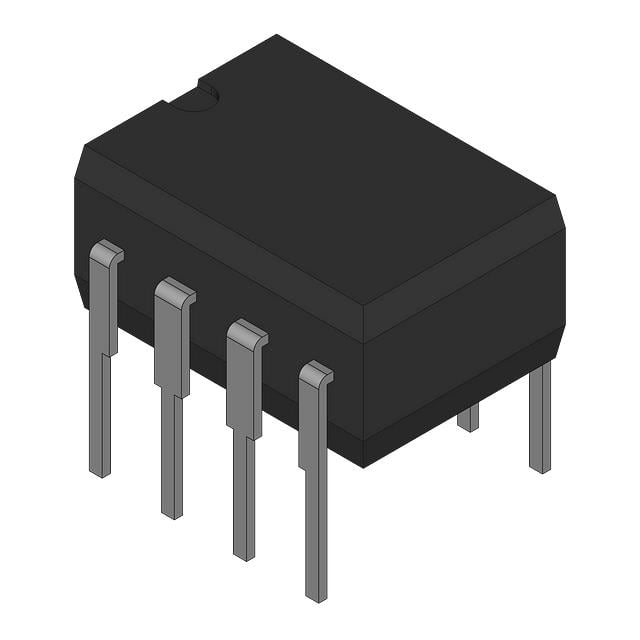

ICLS6023J Infineon Current Sense Amplifier | PG-DIP-8-6 | 70V, 1.2MHz

Product Overview

The Infineon ICLS6023J is a high-voltage, high-side current sense amplifier designed for precise current measurement in automotive and industrial applications. It operates over a wide common-mode voltage range from 2.7V to 70V, making it suitable for 12V, 24V, and 48V systems. The device features a gain of 20 V/V and a bandwidth of 1.2 MHz, enabling accurate monitoring of fast transient currents. Housed in a compact PG-DIP-8-6 package, it offers excellent thermal performance and reliability.

Detailed Technical Specifications

Key Features

• Wide common-mode voltage range: 2.7V to 70V
• High bandwidth: 1.2 MHz for fast current sensing
• Low offset voltage: ±0.5 mV max
• Low gain error: ±0.5% max
• Single-supply operation: 2.7V to 5.5V
• High-side current sensing capability
• Robust ESD protection: 2 kV HBM
• Automotive qualified (AEC-Q100)

Target Applications

• Automotive: Electric power steering (EPS), battery management systems (BMS), DC-DC converters, motor control
• Industrial: Programmable logic controllers (PLC), servo drives, power supplies
• Consumer: Power tools, e-bikes, drones
• Telecom: 5G base station power management
• Specific examples: Infineon TLE9879 motor driver, Infineon TLF35584 power supply, 5G base station remote radio unit (RRU) current monitoring

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for ICLS6023J. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
