IR2103PBF Infineon Gate Driver | 8-PDIP | 600V, 0.6A Peak

Product Overview

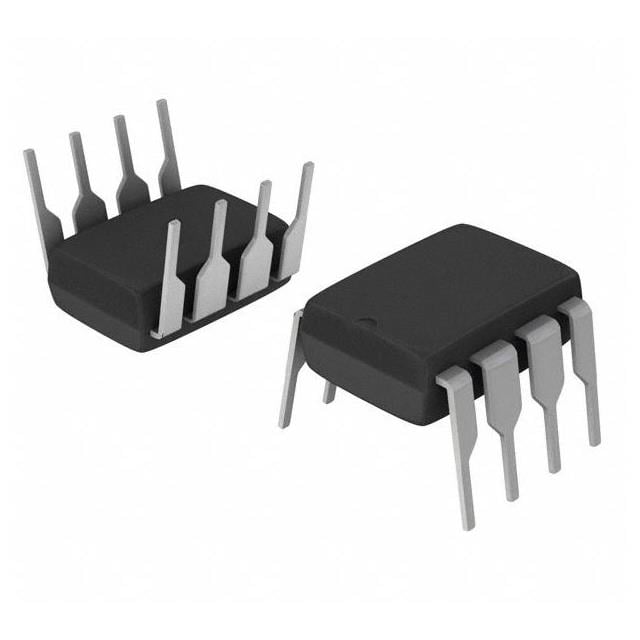

The IR2103PBF is a high-voltage, high-speed power MOSFET and IGBT driver with independent high- and low-side referenced output channels. Manufactured by Infineon Technologies, this device is designed for applications requiring efficient switching and robust performance. It features a floating channel designed for bootstrap operation, enabling drive of N-channel power MOSFETs or IGBTs in high-side configurations up to 600V. The logic inputs are compatible with standard CMOS or LSTTL outputs, down to 3.3V logic. The IR2103PBF is offered in an 8-lead PDIP package, making it suitable for through-hole mounting in various power conversion systems.

Detailed Technical Specifications

Key Features

• Floating channel designed for bootstrap operation up to 600V
• Fully operational to +125°C
• Tolerant to negative transient voltage (dV/dt immune)
• Undervoltage lockout for both channels
• 3.3V, 5V, and 15V input logic compatible
• Matched propagation delay for both channels
• Outputs in phase with inputs
• Lead-free and RoHS compliant

Target Applications

• Motor drives for industrial automation (e.g., Siemens SIMOTICS servo drives)
• Switched-mode power supplies (SMPS) for telecom base stations (e.g., Huawei 5G base station power modules)
• DC-DC converters for automotive infotainment systems (e.g., Tesla Model 3 dashboard power supply)
• Uninterruptible power supplies (UPS) for data centers (e.g., APC Smart-UPS)
• Power inverters for solar energy systems (e.g., SMA Sunny Boy inverters)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for IR2103PBF. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
