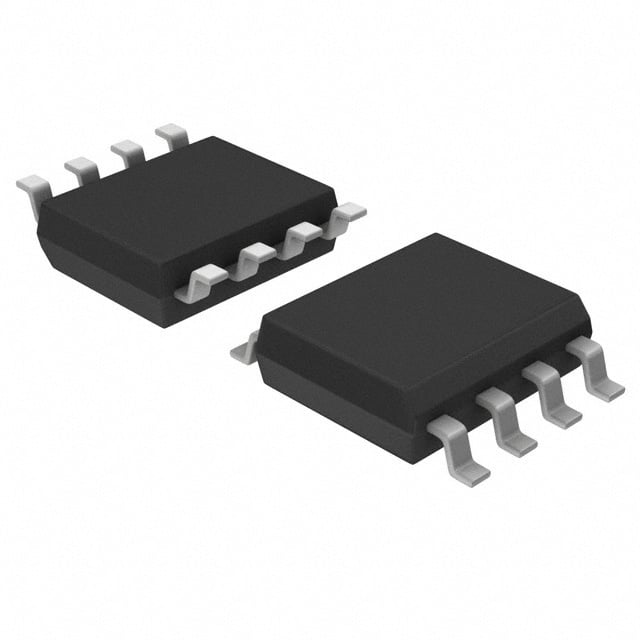

IR2109SPBF Infineon Gate Driver | 8-SOIC | 600V, 0.25A Sink/Source

Product Overview

The IR2109SPBF is a high-voltage, high-speed power MOSFET and IGBT driver with independent high- and low-side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL outputs, down to 3.3V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. Propagation delays are matched to simplify use in high frequency applications. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high-side configuration which operates up to 600V.

Detailed Technical Specifications

Key Features

• Floating channel designed for bootstrap operation up to 600V
• Tolerant to negative transient voltage up to -50V on VS pin
• Gate drive supply range from 10V to 20V
• Undervoltage lockout for both VCC and VBS
• 3.3V, 5V, and 15V logic input compatible
• Matched propagation delay for both channels
• Outputs in phase with inputs (HIN and LIN)
• Shutdown input (SD) for fault protection

Target Applications

• Half-bridge and full-bridge converters in 5G base station power supplies
• Motor drives for industrial automation and robotics
• DC-DC converters for telecom and server power
• Class-D audio amplifiers for automotive infotainment
• Uninterruptible power supplies (UPS) for data centers
• Induction heating and welding equipment

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for IR2109SPBF. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

IR2109SPBF 是一款高壓、高速功率 MOSFET 和 IGBT 驅動器，具有獨立的高端和低端參考輸出通道。專有的 HVIC 和抗閉鎖 CMOS 技術實現了堅固的單片結構。邏輯輸入與標準 CMOS 或 LSTTL 輸出兼容，低至 3.3V 邏輯。輸出驅動器具有高脈衝電流緩衝級，旨在最小化驅動器交叉導通。傳播延遲匹配，簡化了在高頻應用中的使用。浮動通道可用於驅動高端配置中的 N 溝道功率 MOSFET 或 IGBT，工作電壓高達 600V。

詳細技術參數

核心特性

• 浮動通道設計用於自舉操作，高達 600V
• VS 引腳可承受高達 -50V 的負瞬態電壓
• 柵極驅動電源範圍 10V 至 20V
• VCC 和 VBS 欠壓鎖定
• 兼容 3.3V、5V 和 15V 邏輯輸入
• 兩個通道的傳播延遲匹配
• 輸出與輸入同相 (HIN 和 LIN)
• 關斷輸入 (SD) 用於故障保護

典型應用場景

• 5G 基站電源中的半橋和全橋轉換器
• 工業自動化和機器人中的電機驅動
• 電信和服務器電源的 DC-DC 轉換器
• 汽車信息娛樂系統的 D 類音頻放大器
• 數據中心的不間斷電源 (UPS)
• 感應加熱和焊接設備

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 IR2109SPBF 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
