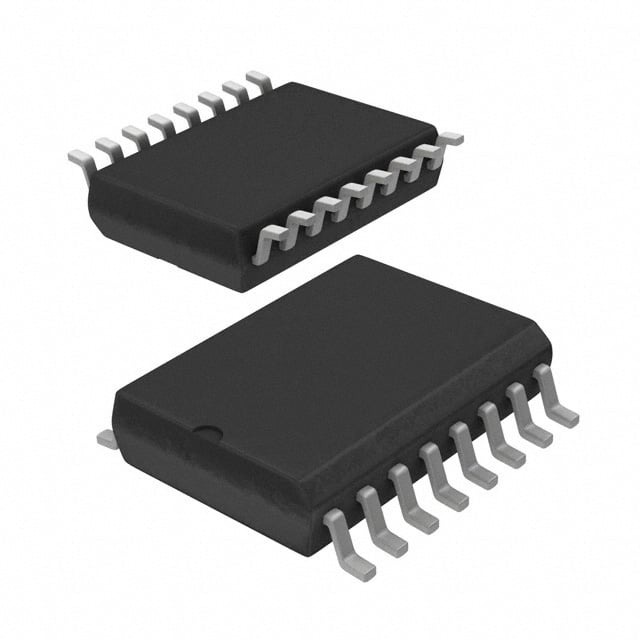

IR2110STRPBF Infineon Gate Driver IC | 16-SOIC | 600V Offset, 2A Peak

Product Overview

The IR2110STRPBF is a high-voltage, high-speed power MOSFET and IGBT driver with independent high- and low-side referenced output channels. Manufactured by Infineon Technologies, this device is designed for applications requiring high-side and low-side gate drive capability. It features a floating channel designed for bootstrap operation, enabling it to drive N-channel MOSFETs or IGBTs in a half-bridge configuration. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. The logic input is compatible with standard CMOS or LSTTL outputs, down to 3.3V logic. The device is offered in a 16-pin SOIC package, suitable for surface-mount assembly.

Detailed Technical Specifications

Key Features

• Floating channel designed for bootstrap operation, fully operational to +600V
• Tolerant to negative transient voltage, dV/dt immune
• Gate drive supply range from 10V to 20V
• Undervoltage lockout for both channels
• 3.3V logic compatible
• Matched propagation delay for both channels
• High-side output in phase with input (HIN)
• Low-side output in phase with input (LIN)

Target Applications

The IR2110STRPBF is ideal for a wide range of power conversion and motor control applications. Specific examples include: 5G base station power supplies, server power supplies, solar inverters, uninterruptible power supplies (UPS), motor drives for industrial automation, electric vehicle (EV) charging stations, and home appliance motor control (e.g., washing machines, air conditioners).

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for IR2110STRPBF. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
