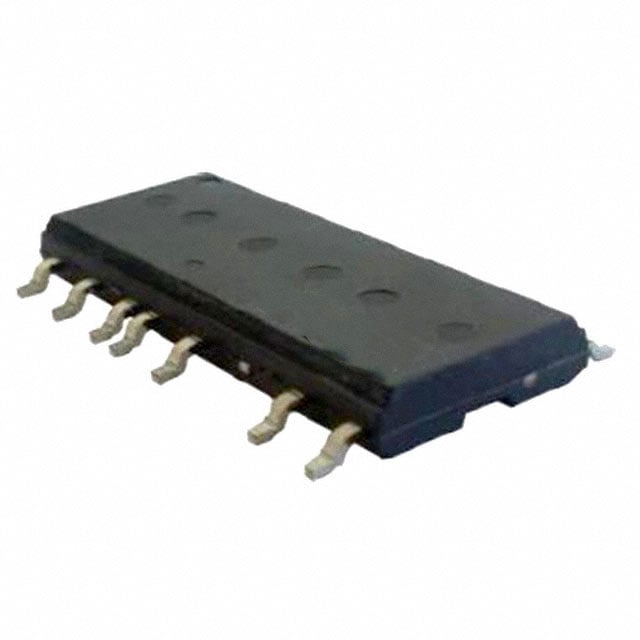

IRSM505-055PA Infineon CIPOS Nano IPM | 23-SOP | 500V, 5A, 3-Phase

Product Overview

The IRSM505-055PA is a highly integrated 3-phase inverter power module from Infineon's CIPOS Nano series. It combines a 3-phase gate driver IC with six IGBTs and freewheeling diodes in a compact 23-SOP package. Designed for low-power motor drive applications, it offers a voltage rating of 500V and a current rating of 5A, making it ideal for space-constrained designs requiring high efficiency and reliability.

Detailed Technical Specifications

Key Features

• Highly integrated 3-phase inverter in a small 23-SOP package
• Built-in bootstrap diodes and gate driver
• Low V_CE(sat) IGBTs for high efficiency
• Temperature monitoring via NTC thermistor
• Cross-conduction prevention logic
• RoHS compliant

Target Applications

• Home appliance motor drives (e.g., washing machines, air conditioners, refrigerators)
• Industrial automation (e.g., conveyor belts, pumps, fans)
• Power tools (e.g., drills, saws)
• 5G base station cooling fans
• Automotive auxiliary drives (e.g., electric power steering, oil pumps)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for IRSM505-055PA. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
