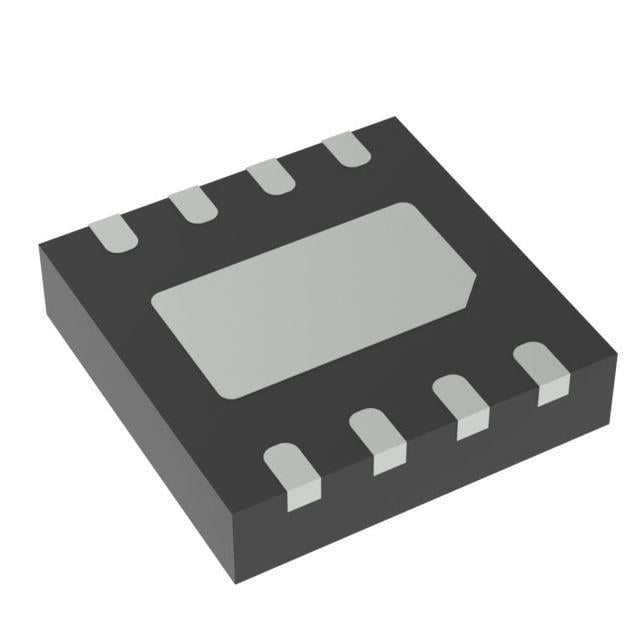

S25FL064LABNFV013 Infineon NOR Flash | 8-WSON (5x6) | 64Mb, SPI, 133MHz

Product Overview

The S25FL064LABNFV013 is a 64Mb (8MB) NOR Flash memory device from Infineon, designed for high-performance embedded applications. It operates with a single 2.7V to 3.6V power supply and supports SPI (Serial Peripheral Interface) with clock frequencies up to 133MHz. The device is housed in an 8-pin WSON (5x6mm) package, offering a compact footprint for space-constrained designs. It features a flexible sector architecture with 256KB sectors, 64KB subsectors, and 4KB parameter sectors, enabling efficient code and data storage. The S25FL064LABNFV013 is ideal for applications requiring fast read speeds, low power consumption, and reliable data retention.

Detailed Technical Specifications

Key Features

• High-speed SPI interface up to 133 MHz
• Flexible sector architecture with 256KB, 64KB, and 4KB sectors
• Low power consumption: 25 mA active read, 5 µA deep power-down
• Wide operating voltage range: 2.7V to 3.6V
• Industrial temperature range: -40°C to +85°C
• Reliable data retention of 20 years
• 100,000 program/erase cycles per sector
• Software and hardware write protection
• JEDEC standard SPI command set
• RoHS compliant and halogen-free

Target Applications

The S25FL064LABNFV013 is suitable for a wide range of applications, including:

• 5G base stations: for boot code and configuration storage
• Automotive dashboards: for firmware and graphics data
• Industrial IoT devices: for data logging and firmware updates
• Smart home hubs: for operating system and application code
• Networking equipment: for router and switch firmware
• Medical devices: for patient monitoring and diagnostic equipment
• Consumer electronics: for smart TVs, set-top boxes, and gaming consoles

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for S25FL064LABNFV013. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

S25FL064LABNFV013 是英飛凌推出的一款 64Mb（8MB）NOR Flash 存儲器，專為高性能嵌入式應用設計。它支持 2.7V 至 3.6V 的單電源供電，並採用 SPI（串行外設接口）通信，時鐘頻率最高可達 133MHz。該器件採用 8 引腳 WSON（5x6mm）封裝，佔用空間小，適合空間受限的設計。其靈活的扇區結構包括 256KB 扇區、64KB 子扇區和 4KB 參數扇區，可實現高效的代碼和數據存儲。S25FL064LABNFV013 非常適合需要快速讀取速度、低功耗和高可靠性的應用。

詳細技術參數

核心特性

• 高速 SPI 接口，最高 133 MHz
• 靈活的扇區結構：256KB、64KB 和 4KB 扇區
• 低功耗：25 mA 讀取電流，5 µA 深度休眠電流
• 寬工作電壓範圍：2.7V 至 3.6V
• 工業級溫度範圍：-40°C 至 +85°C
• 20 年數據保持能力
• 每扇區 100,000 次擦寫壽命
• 軟件和硬件寫保護
• 符合 JEDEC 標準的 SPI 指令集
• 符合 RoHS 標準，無滷素

典型應用場景

S25FL064LABNFV013 適用於多種應用，包括：

• 5G 基站：用於啟動代碼和配置存儲
• 汽車儀表盤：用於固件和圖形數據
• 工業物聯網設備：用於數據記錄和固件更新
• 智能家居中樞：用於操作系統和應用程序代碼
• 網絡設備：用於路由器和交換機固件
• 醫療設備：用於病人監護和診斷設備
• 消費電子：用於智能電視、機頂盒和遊戲主機

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 S25FL064LABNFV013 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
