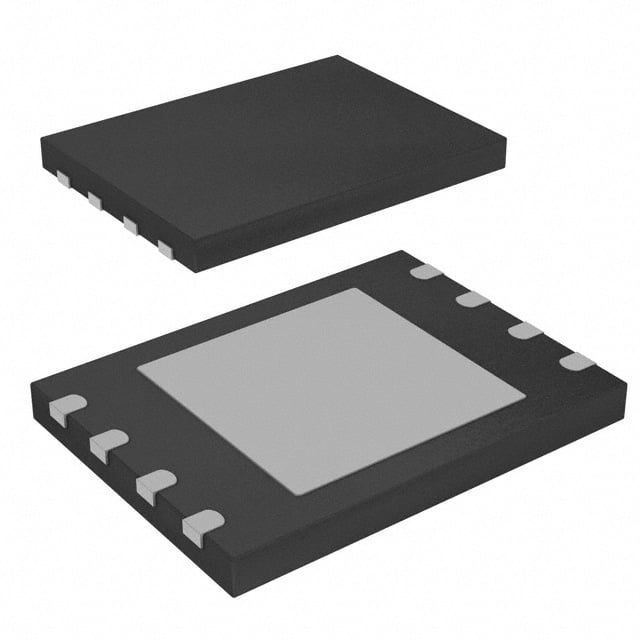

S25FL128SAGNFI000 Infineon NOR Flash | 8-WSON (6x8) | 128Mb, SPI, 133MHz

Product Overview

The S25FL128SAGNFI000 is a high-performance 128Mb (16MB) NOR Flash memory device from Infineon, designed for reliable code storage and data retention in embedded systems. Housed in a compact 8-WSON (6x8mm) package, it offers a wide voltage range (2.7V to 3.6V) and supports SPI and Dual/Quad SPI interfaces for fast read operations up to 133MHz. With advanced features like Multi-I/O SPI, sector erase, and 256-byte page program, this device is ideal for applications requiring high density, low power, and robust performance.

Detailed Technical Specifications

Key Features

• High-speed SPI interface with clock frequency up to 133 MHz
• Dual/Quad SPI read for enhanced throughput
• Flexible sector architecture: 4 kB, 32 kB, 64 kB sectors
• Low power consumption: active read current 25 mA (typ), standby 50 µA
• Software and hardware write protection
• Status register and security features
• RoHS compliant and lead-free

Target Applications

• 5G base stations: code storage for baseband processors
• Automotive dashboard: firmware for infotainment and instrument clusters
• Industrial IoT: data logging and configuration storage
• Networking equipment: boot code for routers and switches
• Consumer electronics: smart home devices and wearables

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for S25FL128SAGNFI000. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

S25FL128SAGNFI000 是英飛凌推出的一款高性能 128Mb（16MB）NOR Flash 存儲器，專為嵌入式系統中的可靠代碼存儲和數據保持而設計。採用緊湊的 8-WSON（6x8mm）封裝，支持 2.7V 至 3.6V 寬電壓範圍，並支持 SPI、Dual SPI 和 Quad SPI 接口，最高讀取頻率可達 133MHz。憑藉多 I/O SPI、扇區擦除和 256 字節頁編程等先進特性，該器件非常適合需要高密度、低功耗和強健性能的應用。

詳細技術參數

核心特性

• 高速 SPI 接口，時鐘頻率最高 133 MHz
• Dual/Quad SPI 讀取，提高吞吐量
• 靈活的扇區結構：4 kB、32 kB、64 kB 扇區
• 低功耗：典型讀取電流 25 mA，待機 50 µA
• 軟件和硬件寫保護
• 狀態寄存器和安全功能
• 符合 RoHS 標準，無鉛

典型應用場景

• 5G 基站：基帶處理器的代碼存儲
• 汽車儀表盤：信息娛樂和儀表組的固件
• 工業物聯網：數據記錄和配置存儲
• 網絡設備：路由器和交換機的啟動代碼
• 消費電子：智能家居設備和可穿戴設備

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 S25FL128SAGNFI000 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
