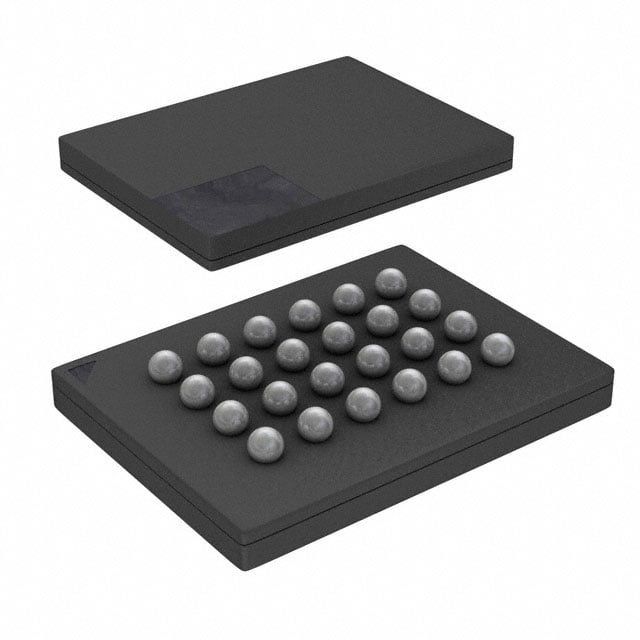

S25FL256SAGBHI300 Infineon NOR Flash | 24-BGA(6x8) | 256Mb, 133MHz SPI

Product Overview

The S25FL256SAGBHI300 is a 256Mb (32MB) NOR Flash memory device from Infineon's FL-S family, offering high-performance SPI interface with clock speeds up to 133MHz. Packaged in a compact 24-ball BGA (6x8mm), it is designed for applications requiring fast read speeds, low power consumption, and reliable data storage. The device supports both SPI and Dual/Quad SPI modes, enabling efficient code execution and data storage in embedded systems.

Detailed Technical Specifications

Key Features

• High-speed SPI interface up to 133 MHz
• Dual/Quad SPI modes for enhanced throughput
• Low power consumption: active read 25 mA (typ), standby 50 µA (typ)
• Uniform 64 KB sectors with 4 KB parameter sectors
• Advanced security features: OTP, password protection, and serial number
• JEDEC standard SPI footprint
• RoHS compliant and halogen-free

Target Applications

• 5G base stations: for boot code and configuration storage
• Automotive dashboard: for firmware and graphics data
• Industrial IoT: for data logging and firmware updates
• Networking equipment: for switch/router code storage
• Smart meters: for application code and data

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for S25FL256SAGBHI300. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

S25FL256SAGBHI300 是英飛凌 FL-S 系列的一款 256Mb（32MB）NOR Flash 存儲器，提供高性能 SPI 接口，時鐘速度高達 133MHz。採用緊湊的 24 球 BGA（6x8mm）封裝，適用於需要快速讀取速度、低功耗和可靠數據存儲的應用。該器件支持 SPI 和 Dual/Quad SPI 模式，可在嵌入式系統中實現高效的代碼執行和數據存儲。

詳細技術參數

核心特性

• 高速 SPI 接口，最高 133 MHz
• Dual/Quad SPI 模式，提高吞吐量
• 低功耗：典型讀取電流 25 mA，待機 50 µA
• 統一的 64 KB 扇區和 4 KB 參數扇區
• 高級安全功能：OTP、密碼保護和序列號
• JEDEC 標準 SPI 引腳
• 符合 RoHS 和無滷素

典型應用場景

• 5G 基站：用於啟動代碼和配置存儲
• 汽車儀表盤：用於固件和圖形數據
• 工業物聯網：用於數據記錄和固件更新
• 網絡設備：用於交換機/路由器代碼存儲
• 智能電錶：用於應用代碼和數據

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 S25FL256SAGBHI300 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
