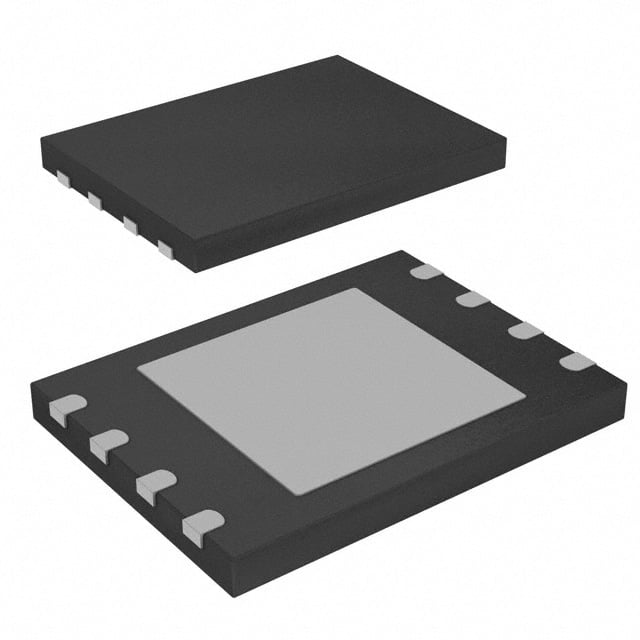

S25HL512TFANHI010 Infineon NOR Flash | 8-WSON (6x8) | 512Mb, 166MHz, 1.8V

Product Overview

The Infineon S25HL512TFANHI010 is a high-performance 512Mb NOR Flash memory device designed for demanding applications requiring fast read speeds and reliable data storage. It operates at a voltage range of 1.7V to 2.0V (typical 1.8V) and supports a clock frequency up to 166MHz in Quad SPI mode. The device is housed in a compact 8-WSON (6x8mm) package, making it suitable for space-constrained designs. With its advanced MirrorBit® technology, it offers high density and excellent endurance, making it ideal for code storage, data logging, and firmware updates in embedded systems.

Detailed Technical Specifications

Key Features

• High-density 512Mb NOR Flash with fast read performance
• Quad SPI interface with up to 166MHz clock speed
• Low power consumption: active read current 25mA (typical), standby 10μA
• Advanced sector architecture with uniform 4KB sectors
• Supports XIP (eXecute In Place) for direct code execution
• Software and hardware write protection options
• Industrial temperature range (-40°C to +85°C)
• RoHS compliant and halogen-free

Target Applications

• 5G base stations: firmware storage and boot code
• Automotive dashboards: graphics data and system code
• Industrial IoT: data logging and configuration storage
• Networking equipment: router and switch firmware
• Smart meters: code and parameter storage
• Medical devices: reliable code execution

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for S25HL512TFANHI010. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

英飛凌 S25HL512TFANHI010 是一款高性能 512Mb NOR Flash 存儲器，專為需要快速讀取速度和可靠數據存儲的應用而設計。它工作在 1.7V 至 2.0V（典型 1.8V）電壓範圍，並在 Quad SPI 模式下支持高達 166MHz 的時鐘頻率。該器件採用緊湊的 8-WSON（6x8mm）封裝，適合空間受限的設計。憑藉先進的 MirrorBit® 技術，它提供高密度和出色的耐久性，非常適合嵌入式系統中的代碼存儲、數據記錄和固件更新。

詳細技術參數

核心特性

• 高密度 512Mb NOR Flash，快速讀取性能
• Quad SPI 接口，最高 166MHz 時鐘速度
• 低功耗：典型讀取電流 25mA，待機 10μA
• 先進的扇區架構，均勻 4KB 扇區
• 支持 XIP（就地執行），直接執行代碼
• 軟件和硬件寫保護選項
• 工業溫度範圍（-40°C 至 +85°C）
• 符合 RoHS 標準，無鹵素

典型應用場景

• 5G 基站：固件存儲和啟動代碼
• 汽車儀表板：圖形數據和系統代碼
• 工業物聯網：數據記錄和配置存儲
• 網絡設備：路由器和交換機固件
• 智能電錶：代碼和參數存儲
• 醫療設備：可靠代碼執行

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 S25HL512TFANHI010 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
