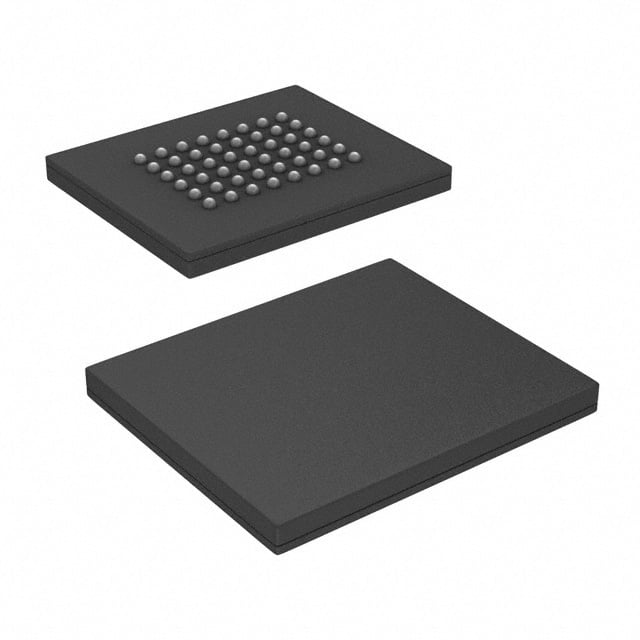

S29JL032J70BHI323 Infineon NOR Flash | 48-FBGA (8.15x6.15) | 32Mb, 70ns

Product Overview

The S29JL032J70BHI323 is a 32 Megabit (4 M x 8-Bit/2 M x 16-Bit) CMOS 3.0 Volt-only, Simultaneous Read/Write, Page-Mode Flash memory device manufactured by Infineon Technologies. It is organized as 4,194,304 bytes or 2,097,152 words, depending on the data bus width configuration. The device operates from a single 2.7V to 3.6V power supply, making it ideal for low-power applications. It features a 70 ns access time and supports page-mode read operations for enhanced performance. The package is a 48-ball FBGA (8.15 mm x 6.15 mm) with a 0.8 mm ball pitch, suitable for space-constrained designs.

Detailed Technical Specifications

Key Features

• Single 3.0V read/write operation
• High performance: 70 ns access time
• Page-mode read: 8-word page for faster sequential access
• Simultaneous read/write operation for enhanced system throughput
• Low power consumption: typical active current 18 mA, standby 1 μA
• Sector architecture: uniform 64 Kbyte sectors
• 100,000 erase/program cycles per sector
• 20-year data retention
• Hardware and software write protection
• CFI (Common Flash Interface) compliant

Target Applications

• 5G base stations: for boot code and configuration storage
• Automotive dashboard: for firmware and graphics data
• Industrial control systems: for program and parameter storage
• Networking equipment: routers, switches for firmware
• Medical devices: portable monitors, diagnostic equipment
• Consumer electronics: set-top boxes, smart home hubs

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for S29JL032J70BHI323. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

S29JL032J70BHI323 是英飛凌科技生產的32兆位（4 M x 8位/2 M x 16位）CMOS 3.0伏僅供電、同時讀寫、頁模式快閃記憶體器件。根據數據匯流排寬度配置，它可組織為4,194,304字節或2,097,152字。該器件在2.7V至3.6V的單電源下工作，非常適合低功耗應用。它具有70 ns的存取時間，並支持頁模式讀取操作以增強性能。封裝為48球FBGA（8.15 mm x 6.15 mm），球間距0.8 mm，適用於空間受限的設計。

詳細技術參數

核心特性

• 單一3.0V讀寫操作
• 高性能：70 ns存取時間
• 頁模式讀取：8字頁，加快順序存取
• 同時讀寫操作，提高系統吞吐量
• 低功耗：典型工作電流18 mA，待機1 μA
• 扇區架構：統一的64 K字節扇區
• 每個扇區10萬次擦除/編程週期
• 20年數據保持
• 硬件和軟件寫保護
• 符合CFI（通用快閃記憶體接口）

典型應用場景

• 5G基站：用於啟動代碼和配置存儲
• 汽車儀表板：用於固件和圖形數據
• 工業控制系統：用於程序和參數存儲
• 網絡設備：路由器、交換機的固件
• 醫療設備：便攜式監護儀、診斷設備
• 消費電子：機頂盒、智能家居中心

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 S29JL032J70BHI323 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
