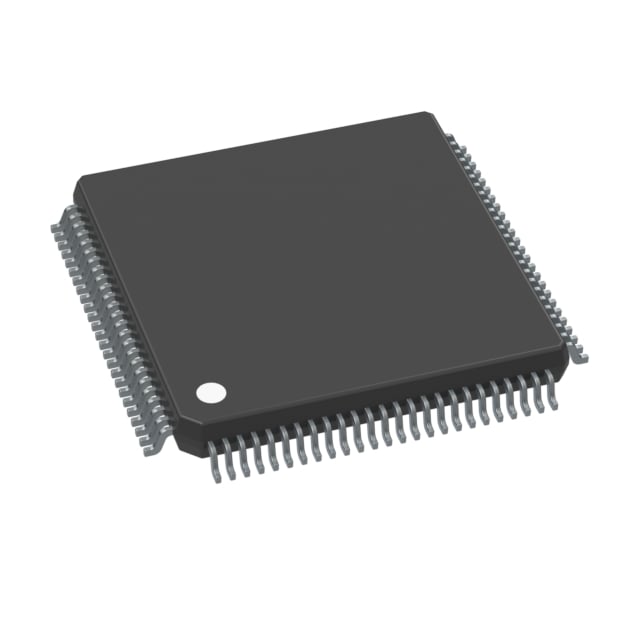

S6E2H46F0AGV2000M Infineon MCU | 100-LQFP (14x14) | ARM Cortex-M4F, 2MB Flash

Product Overview

The Infineon S6E2H46F0AGV2000M is a high-performance 32-bit microcontroller based on the ARM Cortex-M4F core with floating-point unit. It is part of the FM4 family, designed for demanding embedded applications requiring high processing power, rich connectivity, and advanced analog features. The device operates at up to 200 MHz and integrates up to 2 MB of flash memory and 256 KB of SRAM. It is housed in a 100-pin LQFP package with a 14x14 mm footprint, making it suitable for space-constrained industrial and automotive applications.

Detailed Technical Specifications

Key Features

• High-performance ARM Cortex-M4F core with DSP instructions and FPU
• Large on-chip memory: 2 MB flash with ECC, 256 KB SRAM
• Rich connectivity: Ethernet MAC, USB 2.0 OTG, CAN 2.0B, LIN, multiple SPI/I2C/UART
• Advanced analog: 12-bit ADC with up to 24 channels, 2 DACs, comparators
• Flexible timers: 16-bit multi-function timers, motor control PWM, quadrature encoder interface
• Wide operating voltage and temperature range for industrial and automotive
• Security features: unique ID, CRC, AES hardware accelerator

Target Applications

• Industrial control systems (PLCs, motor drives, inverters)
• Automotive body electronics (BCM, gateway, lighting)
• 5G base station control and monitoring
• Smart grid and energy management
• Building automation (HVAC, access control)
• Medical devices (patient monitoring, diagnostic equipment)
• Consumer electronics (high-end appliances, robotics)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for S6E2H46F0AGV2000M. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

英飛凌 S6E2H46F0AGV2000M 是一款基於 ARM Cortex-M4F 內核的高性能 32 位微控制器，配備浮點運算單元。它屬於 FM4 系列，專為需要高處理能力、豐富連接性和先進模擬功能的嵌入式應用而設計。該器件最高工作頻率為 200 MHz，集成高達 2 MB 的快閃記憶體和 256 KB 的 SRAM。採用 100 引腳 LQFP 封裝，尺寸為 14x14 mm，適合空間受限的工業和汽車應用。

詳細技術參數

核心特性

• 高性能 ARM Cortex-M4F 內核，帶 DSP 指令和 FPU
• 大容量片上存儲：2 MB 快閃記憶體（帶 ECC），256 KB SRAM
• 豐富的連接性：Ethernet MAC、USB 2.0 OTG、CAN 2.0B、LIN、多個 SPI/I2C/UART
• 先進模擬：12 位 ADC（最多 24 通道）、2 個 DAC、比較器
• 靈活的定時器：16 位多功能定時器、電機控制 PWM、正交編碼器接口
• 寬工作電壓和溫度範圍，適用於工業和汽車
• 安全特性：唯一 ID、CRC、AES 硬件加速器

典型應用場景

• 工業控制系統（PLC、電機驅動、逆變器）
• 汽車車身電子（BCM、網關、照明）
• 5G 基站控制與監控
• 智能電網與能源管理
• 樓宇自動化（HVAC、門禁控制）
• 醫療設備（病人監護、診斷設備）
• 消費電子（高端家電、機器人）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 S6E2H46F0AGV2000M 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
