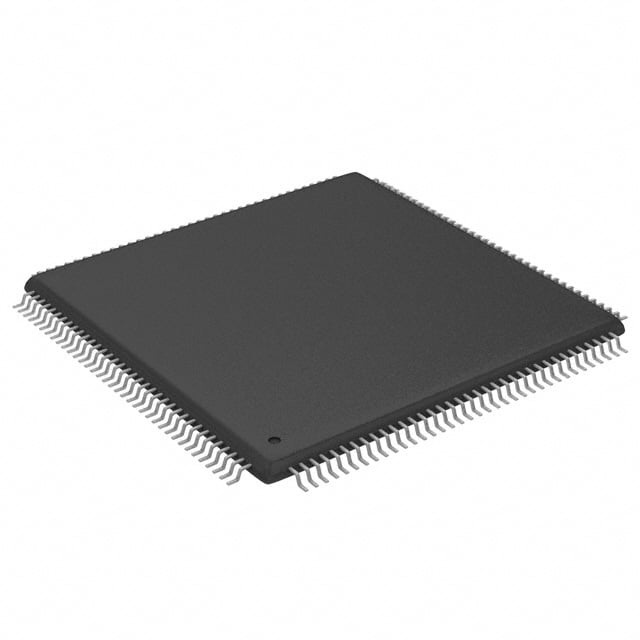

XMC4700F144F2048AAXQMA1 Infineon MCU | PG-LQFP-144-24 | 200MHz ARM Cortex-M4, 2MB Flash

Product Overview

The XMC4700F144F2048AAXQMA1 is a high-performance 32-bit microcontroller from Infineon's XMC4000 family, based on the ARM Cortex-M4 core with a floating-point unit (FPU). It operates at up to 200 MHz and features 2 MB of flash memory and 352 KB of SRAM. The device is housed in a PG-LQFP-144-24 package, offering a rich set of peripherals including multiple communication interfaces, analog modules, and advanced timer units. It is designed for demanding industrial and automotive applications requiring real-time control and connectivity.

Detailed Technical Specifications

Key Features

• High-performance ARM Cortex-M4 core with DSP instructions and FPU for efficient signal processing.
• Large on-chip memory: 2 MB flash with ECC, 352 KB SRAM.
• Rich peripheral set: multiple ADCs, DACs, timers, and communication interfaces (CAN, USB, SPI, I2C, UART).
• Advanced timer units (GPTA) for complex PWM generation and motor control.
• Integrated security features: CRC, AES-128 encryption.
• Wide operating temperature range suitable for harsh environments.
• Low-power modes for energy-efficient applications.

Target Applications

• Industrial automation: PLCs, motor drives, robotic controllers.
• Automotive: engine control units (ECU), battery management systems (BMS), advanced driver-assistance systems (ADAS).
• Power conversion: solar inverters, uninterruptible power supplies (UPS).
• 5G base station control and monitoring.
• Medical devices: patient monitoring, diagnostic equipment.
• Smart grid: smart meters, power line communication.

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for XMC4700F144F2048AAXQMA1. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

XMC4700F144F2048AAXQMA1 是英飛凌 XMC4000 系列的一款高性能 32 位微控制器，基於 ARM Cortex-M4 內核並帶有浮點運算單元 (FPU)。它最高運行頻率為 200 MHz，配備 2 MB 閃存和 352 KB SRAM。該器件採用 PG-LQFP-144-24 封裝，提供豐富的外設，包括多種通信接口、模擬模塊和高級定時器單元。它專為需要實時控制和連接的苛刻工業及汽車應用而設計。

詳細技術參數

核心特性

• 高性能 ARM Cortex-M4 內核，帶 DSP 指令和 FPU，實現高效信號處理。
• 大容量片上存儲：2 MB 閃存（帶 ECC），352 KB SRAM。
• 豐富的外設：多個 ADC、DAC、定時器和通信接口（CAN、USB、SPI、I2C、UART）。
• 高級定時器單元 (GPTA)，用於複雜 PWM 生成和電機控制。
• 集成安全特性：CRC、AES-128 加密。
• 寬工作溫度範圍，適用於惡劣環境。
• 低功耗模式，適用於節能應用。

典型應用場景

• 工業自動化：PLC、電機驅動、機器人控制器。
• 汽車：發動機控制單元 (ECU)、電池管理系統 (BMS)、高級駕駛輔助系統 (ADAS)。
• 電源轉換：太陽能逆變器、不間斷電源 (UPS)。
• 5G 基站控制與監控。
• 醫療設備：病人監護、診斷設備。
• 智能電網：智能電錶、電力線通信。

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 XMC4700F144F2048AAXQMA1 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
