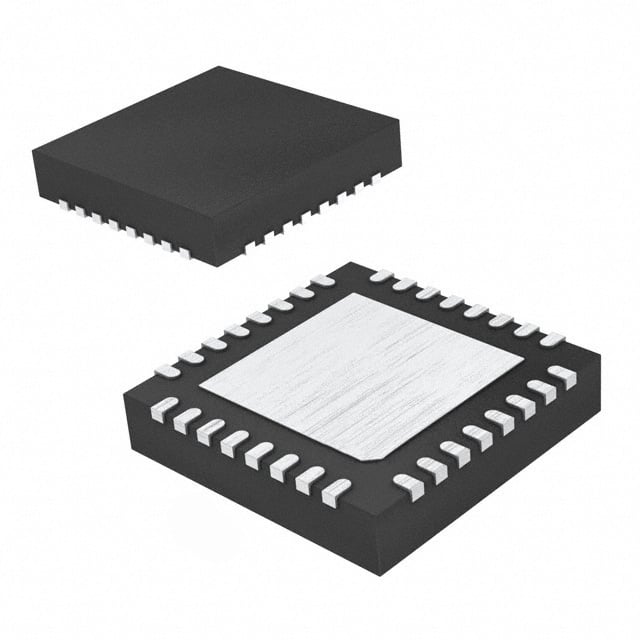

ASL3416SHNY NXP LED Driver | 32-HVQFN (5x5) | 16-Ch, 40V, 50mA

Product Overview

The ASL3416SHNY is a high-performance 16-channel constant current LED driver from NXP Semiconductors, designed for automotive and general lighting applications. It integrates advanced features such as PWM dimming, fault diagnostics, and thermal management in a compact 32-HVQFN (5x5 mm) package. The device operates from a supply voltage of 3.0V to 5.5V and can drive up to 50 mA per channel with a maximum output voltage of 40V. Its robust design ensures reliable operation in harsh environments, making it ideal for exterior and interior automotive lighting, as well as industrial and architectural lighting systems.

Detailed Technical Specifications

Key Features

• 16 constant-current outputs with programmable current up to 50 mA
• Wide output voltage range up to 40V for series LED configurations
• PWM dimming with high frequency (up to 20 kHz) for flicker-free operation
• SPI interface for easy control and diagnostics
• Integrated fault detection: open LED, short LED, and overtemperature warning
• Thermal shutdown protection
• Low quiescent current for energy efficiency
• Compact 5x5 mm HVQFN package for space-constrained designs

Target Applications

• Automotive exterior lighting: headlights, daytime running lights (DRL), turn signals, taillights
• Automotive interior lighting: dashboard backlighting, ambient lighting, dome lights
• Industrial lighting: LED panels, street lighting, high-bay fixtures
• Architectural lighting: decorative LED strips, signage, accent lighting
• 5G base station indicator lights and status LEDs

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for ASL3416SHNY. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
