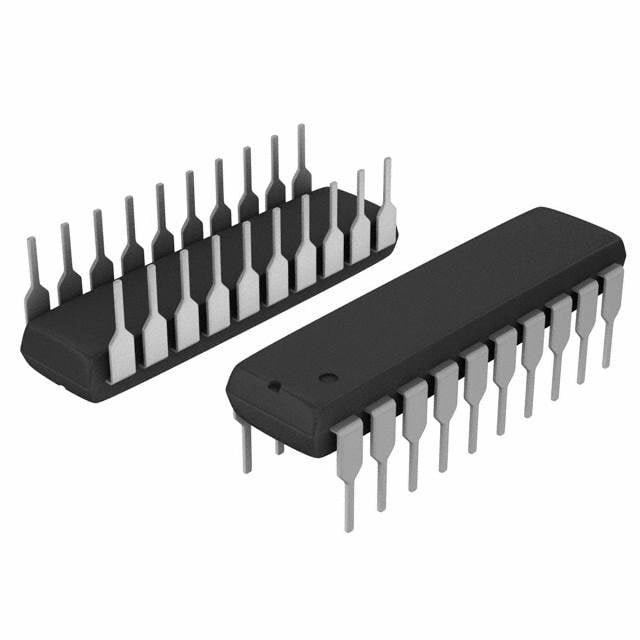

MC14489BPE NXP LED Display Driver | 20-PDIP | 7-Segment, 5-Digit

Product Overview

The MC14489BPE is a monolithic CMOS integrated circuit designed for driving 5-digit, 7-segment LED displays with decimal points. It features a serial interface (SPI-compatible) for data input, simplifying the connection to microcontrollers. The device includes an internal oscillator, multiplex scan circuitry, and constant-current drivers, reducing external component count. It operates from a 5V supply and is available in a 20-pin PDIP package.

Detailed Technical Specifications

Key Features

• Drives 5-digit, 7-segment LED displays with decimal points
• Serial data input with latched outputs
• Internal multiplex scan and constant-current drivers
• Low power consumption (CMOS technology)
• Wide operating temperature range

Target Applications

• Industrial control panels (e.g., PLC displays)
• Consumer electronics (e.g., microwave ovens, digital clocks)
• Automotive dashboard displays
• Medical equipment (e.g., patient monitors)
• 5G base station status indicators
