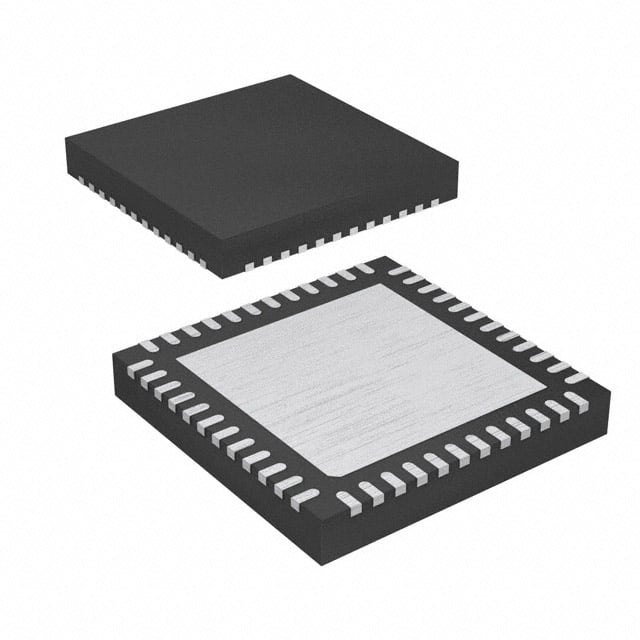

MM9Z1J638BM2EP NXP Battery Sensor IC | 48-QFN-EP(7x7) | I2C, SPI, LIN

Product Overview

The MM9Z1J638BM2EP is a highly integrated battery sensor IC from NXP Semiconductors, designed for precise monitoring of 12V lead-acid batteries in automotive and industrial applications. It combines a 16-bit microcontroller, a CAN/LIN transceiver, and multiple analog front-ends in a compact 48-QFN-EP (7x7 mm) package. The device measures battery voltage, current, and temperature, and calculates key parameters such as state-of-charge (SoC), state-of-health (SoH), and state-of-function (SoF). It supports I2C, SPI, and LIN communication interfaces, making it ideal for battery management systems (BMS) in vehicles, backup power systems, and energy storage.

Detailed Technical Specifications

Key Features

• Integrated 16-bit MCU with dedicated battery management firmware
• High-accuracy voltage and current sensing with 16-bit ADC
• On-chip temperature sensor and external NTC support
• LIN 2.2 and CAN (via external transceiver) communication
• Low-power modes for battery conservation
• Programmable alarm thresholds for overvoltage, undervoltage, overcurrent, and overtemperature
• ISO 26262 ASIL-B ready for functional safety
• AEC-Q100 qualified for automotive applications

Target Applications

• Automotive battery management systems (BMS) for start-stop, micro-hybrid, and electric vehicles
• 12V lead-acid battery monitoring in trucks, buses, and construction equipment
• Backup battery systems for 5G base stations and telecom infrastructure
• Uninterruptible power supplies (UPS) for data centers
• Energy storage systems (ESS) for solar and wind power
• Industrial battery monitoring in forklifts and AGVs

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for MM9Z1J638BM2EP. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

MM9Z1J638BM2EP 是恩智浦半導體推出的一款高度集成的電池傳感器 IC，專為汽車和工業應用中 12V 鉛酸電池的精確監控而設計。它將 16 位微控制器、CAN/LIN 收發器以及多個模擬前端集成在緊湊的 48-QFN-EP（7x7 mm）封裝中。該器件可測量電池電壓、電流和溫度，並計算關鍵參數，如荷電狀態（SoC）、健康狀態（SoH）和功能狀態（SoF）。它支持 I2C、SPI 和 LIN 通信接口，非常適合用於車輛、備用電源系統和儲能系統中的電池管理系統（BMS）。

詳細技術參數

核心特性

• 集成 16 位 MCU，帶專用電池管理固件
• 高精度電壓和電流檢測，配備 16 位 ADC
• 片上溫度傳感器及外部 NTC 支持
• LIN 2.2 和 CAN（通過外部收發器）通信
• 低功耗模式以節省電池電量
• 可編程報警閾值，用於過壓、欠壓、過流和過溫
• 符合 ISO 26262 ASIL-B 功能安全要求
• 通過 AEC-Q100 認證，適用於汽車應用

典型應用場景

• 汽車電池管理系統（BMS），用於啟停、微混動和電動汽車
• 卡車、巴士和工程機械中的 12V 鉛酸電池監控
• 5G 基站和電信基礎設施的備用電池系統
• 數據中心的不間斷電源（UPS）
• 太陽能和風能的儲能系統（ESS）
• 叉車和 AGV 中的工業電池監控

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 MM9Z1J638BM2EP 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
