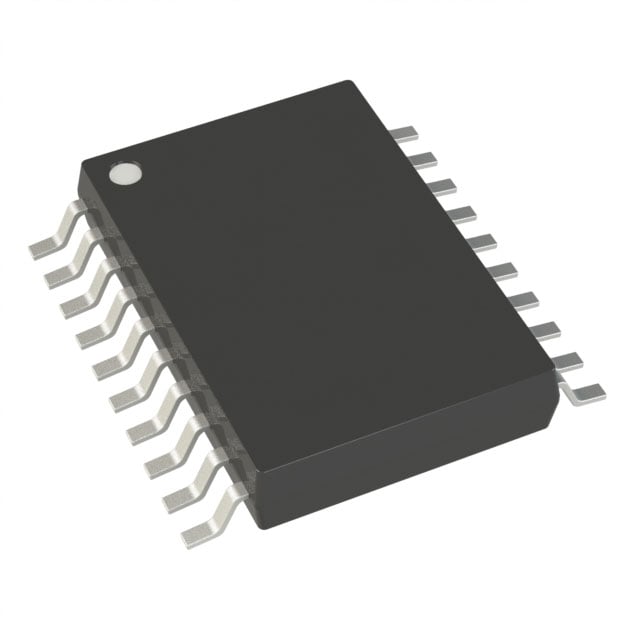

PCA9634PW,118 NXP LED Driver | 20-TSSOP | I2C, 8-bit PWM

Product Overview

The PCA9634PW,118 from NXP Semiconductors is a 8-bit Fm+ I2C-bus LED driver designed for low-power RGB or monochrome LED dimming. It features 8 open-drain outputs, each capable of driving up to 25 mA, with individual brightness control via 8-bit PWM. The device operates from 2.3 V to 5.5 V and is housed in a 20-pin TSSOP package, making it ideal for space-constrained applications.

Detailed Technical Specifications

Key Features

• 8 open-drain outputs with 25 mA sink capability
• Individual 8-bit PWM brightness control
• I2C-bus interface with Fm+ (1 MHz) support
• Programmable output state (on/off/PWM)
• Low standby current (typical 1 µA)
• Internal oscillator (no external components)
• Active LOW reset pin
• Three hardware address pins (up to 27 devices on one bus)

Target Applications

• RGB LED indicators in 5G base station equipment
• Backlight control for automotive dashboard displays
• Status LEDs in server racks and network switches
• Keypad backlighting in industrial control panels
• Ambient lighting in smart home devices
