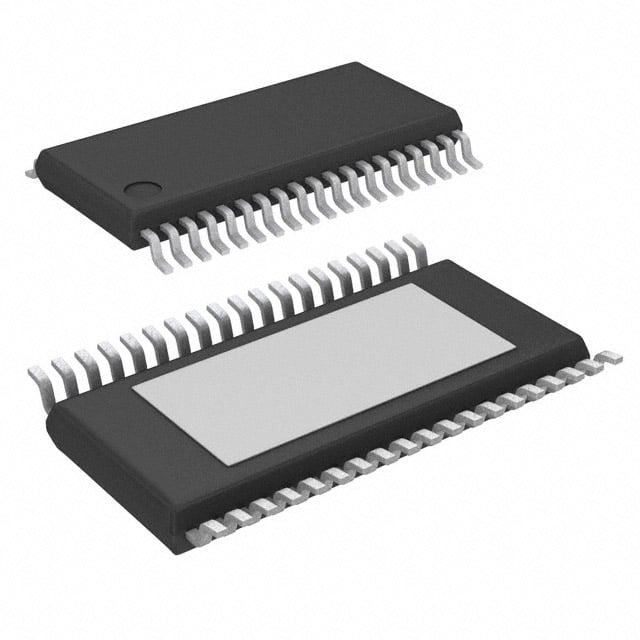

PCA9956BTWY NXP LED Driver | 38-HTSSOP | 24-Channel, I2C, PWM

Product Overview

The PCA9956BTWY is a 24-channel constant current LED driver from NXP Semiconductors, designed for high-performance lighting applications. It features an I2C-bus interface with programmable PWM dimming and output current control. Housed in a compact 38-HTSSOP package, it supports up to 5.5V supply voltage and delivers up to 57mA per channel. This device is ideal for RGB LED control, signage, and automotive lighting.

Detailed Technical Specifications

Key Features

• 24 constant current outputs with programmable current levels
• I2C-bus interface with four selectable slave addresses
• 8-bit PWM dimming for each channel
• Output current accuracy: ±1% (typical)
• Built-in thermal shutdown and open/short LED detection
• Low standby current (typical 10 µA)

Target Applications

• RGB LED lighting for 5G base station status indicators
• Automotive dashboard backlighting and ambient lighting
• Industrial control panel LED indicators
• LED signage and display modules
• General-purpose constant current LED driving

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for PCA9956BTWY. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
