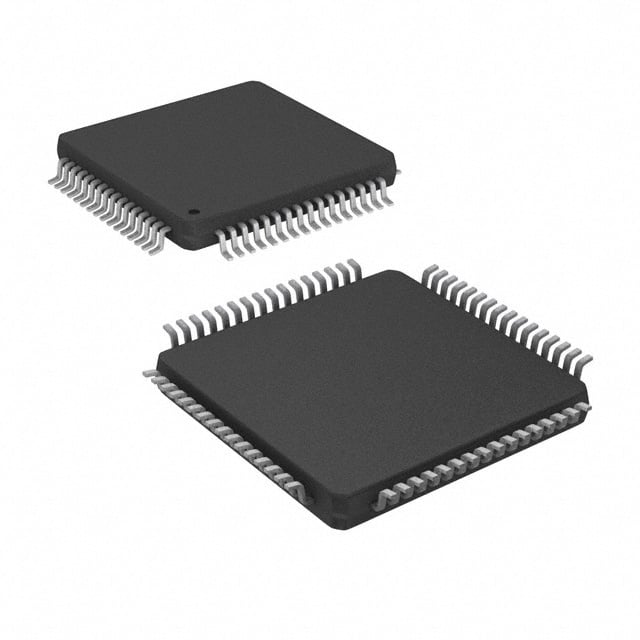

PCF85176H/1,518 NXP LCD Driver | 64-TQFP (10x10) | 40x4 Segments, I2C

Product Overview

The PCF85176H/1,518 is a low-power, 40x4 segment LCD driver from NXP Semiconductors, designed for driving multiplexed LCD displays with up to 160 segments. It features an I2C-bus interface, internal oscillator, and voltage multiplier, making it ideal for battery-powered and portable applications. The device is housed in a compact 64-TQFP (10x10 mm) package, offering a space-saving solution for modern electronic designs.

Detailed Technical Specifications

Key Features

• Low power consumption with automatic power-down mode
• Internal LCD bias generation with voltage multiplier
• I2C-bus interface with programmable address
• Supports 1/4 duty cycle for up to 40x4 segments
• Built-in oscillator, no external components required
• Wide operating voltage range (1.8V to 5.5V)
• ESD protection exceeds 2000V HBM

Target Applications

• 5G base station status display panels
• Automotive dashboard instrument clusters
• Portable medical devices (e.g., glucose meters)
• Smart home thermostats and control panels
• Industrial automation HMI (Human-Machine Interface)
• Battery-powered consumer electronics (e.g., remote controls)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for PCF85176H/1,518. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
