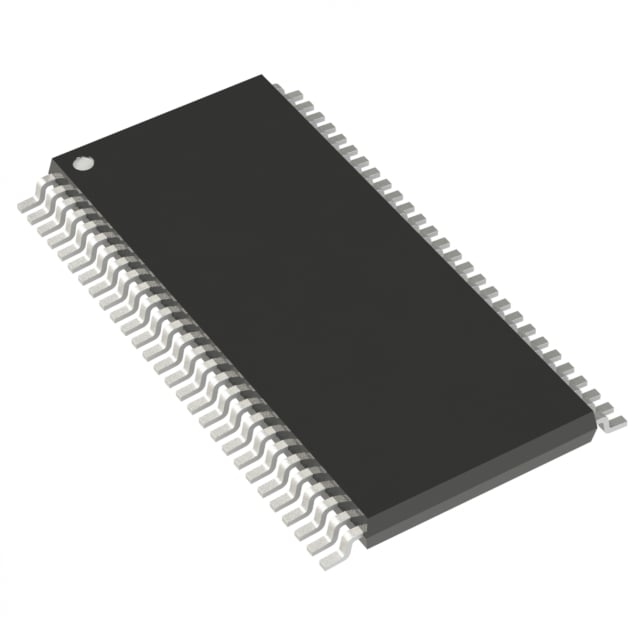

PCF85176T/1Y NXP LCD Driver | 56-TSSOP | 40x4 Segments, I2C

Product Overview

The PCF85176T/1Y is a low-power LCD driver from NXP Semiconductors, designed to drive multiplexed LCD displays with up to 40 segments and 4 backplanes. It features an I2C-bus interface, making it ideal for battery-operated and portable applications. The device is housed in a 56-pin TSSOP package, offering a compact solution for embedded systems requiring alphanumeric or dot-matrix displays.

Detailed Technical Specifications

Key Features

• Low power consumption: typical 10 µA in standby
• Built-in charge pump for LCD bias generation
• I2C-bus interface with programmable address
• Internal oscillator for display timing
• Supports 1/4 duty cycle for up to 160 pixels
• Software programmable frame frequency
• Wide operating voltage range

Target Applications

• Portable medical devices (e.g., glucose meters, thermometers)
• Smart home control panels (e.g., thermostat displays)
• Automotive dashboard indicators
• Industrial automation HMIs
• Consumer electronics (e.g., microwave ovens, washing machines)
