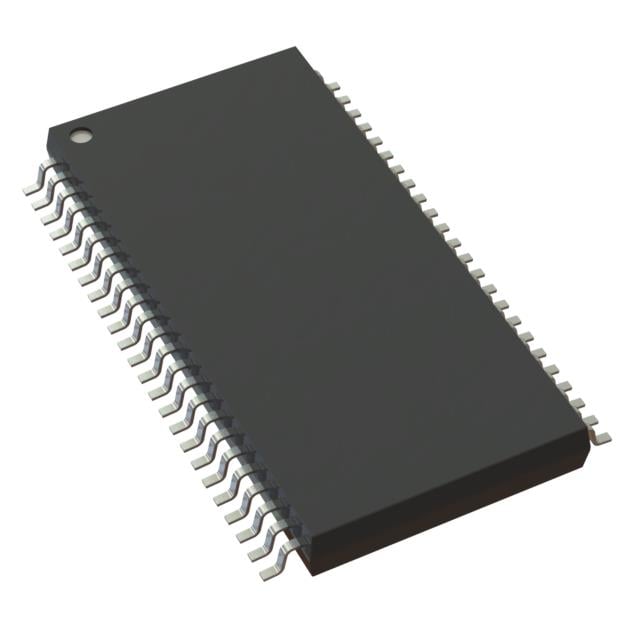

PCF8562TT/2,518 NXP LCD Driver | 48-TSSOP | 4x40, I2C

Product Overview

The PCF8562TT/2,518 from NXP Semiconductors is a low-power, CMOS LCD driver designed to drive dot-matrix or segment LCD displays. It supports up to 4 backplanes and 40 segments, providing a maximum of 160 display elements. The device communicates via I2C-bus, making it ideal for portable and battery-powered applications. Housed in a 48-pin TSSOP package, it offers a compact solution for embedded systems requiring alphanumeric or graphic display capabilities.

Detailed Technical Specifications

Key Features

• I2C-bus interface with selectable slave address
• Internal oscillator with external resistor option
• Software programmable bias and frame frequency
• Built-in charge pump for contrast control
• Low power consumption suitable for battery operation
• Wide operating voltage range

Target Applications

• Portable medical devices (e.g., blood glucose meters)
• Smart home control panels (e.g., thermostat displays)
• Automotive dashboard indicators
• Industrial handheld terminals
• 5G base station status displays
• Consumer electronics (e.g., microwave ovens, washing machines)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for PCF8562TT/2,518. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
