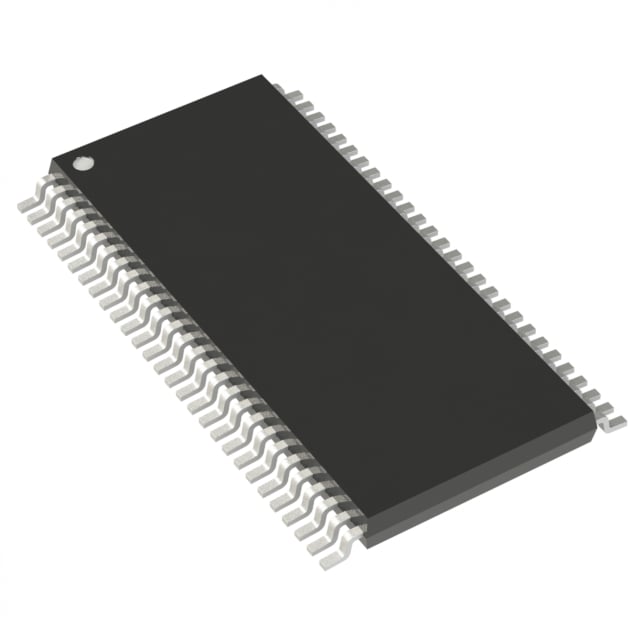

PCF8576DT/2,518 NXP LCD Driver | 56-TSSOP | 40x4 Segments, I2C

Product Overview

The PCF8576DT/2,518 is a low-power, 40x4 segment LCD driver from NXP Semiconductors, designed for driving multiplexed LCD displays with up to 40 segments and 4 backplanes. It features an I2C-bus interface, internal oscillator, and voltage multiplier for generating LCD bias voltages. The device is housed in a 56-pin TSSOP package, making it suitable for space-constrained applications.

Detailed Technical Specifications

Key Features

• 40 x 4 segment LCD driver with I2C interface
• Internal charge pump for LCD bias generation
• Low power consumption (typ. 10 µA in standby)
• Selectable display configuration (static, 1:2, 1:3, 1:4 multiplex)
• Built-in oscillator and reset circuit
• Compatible with 1.8 V to 5.5 V logic

Target Applications

• 5G base station status displays
• Automotive dashboard instrument clusters
• Industrial control panels
• Medical device displays (e.g., infusion pumps)
• Smart home thermostats

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for PCF8576DT/2,518. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
