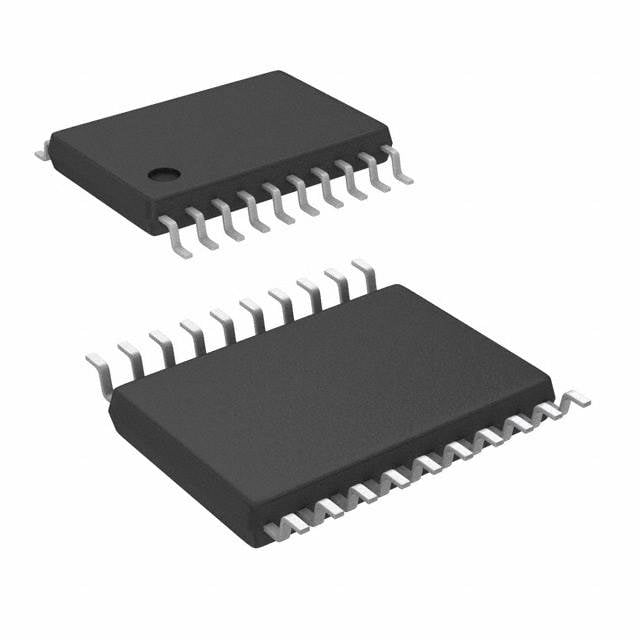

74AC374TTR ST Flip-Flop | 20-TSSOP | 2V-6V, 8-Bit D-Type

Product Overview

The 74AC374TTR is a high-speed octal D-type flip-flop with 3-state outputs from STMicroelectronics, fabricated in advanced AC CMOS technology. It operates from 2V to 6V, offering balanced propagation delays and low power consumption. The device features eight edge-triggered flip-flops with individual D inputs and Q outputs, controlled by a common clock (CP) and output enable (OE). When OE is low, outputs are enabled; when high, outputs are in high-impedance state. Ideal for bus-oriented systems.

Detailed Technical Specifications

Key Features

• High-speed: tPD = 6.5 ns (typ) at VCC=5V
• Low power dissipation: ICC = 4 µA (max) at TA=25°C
• Balanced propagation delays: tPLH ≈ tPHL
• 3-state outputs for bus-oriented applications
• Edge-triggered D-type flip-flops with buffered clock and output enable
• Input and output interface capability: 2V to 6V
• Symmetrical output impedance: |IOH| = IOL = 24 mA (min)
• ESD protection: HBM 2kV, MM 200V
• Latch-up performance exceeds 500 mA per JESD 78 Class II
• Green package: lead-free, halogen-free

Target Applications

• 5G base station control logic: data buffering and synchronization
• Automotive dashboard display: register storage for sensor data
• Industrial PLC: I/O expansion and state storage
• Consumer electronics: set-top box, gaming console data bus
• Medical equipment: patient monitoring data acquisition
• Telecommunications: line card register and buffer

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for 74AC374TTR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

74AC374TTR 是意法半導體推出的高速八路 D 型觸發器（帶三態輸出），採用先進的 AC CMOS 工藝製造。工作電壓範圍為 2V 至 6V，具有平衡的傳播延遲和低功耗。器件包含八個邊沿觸發的觸發器，帶有獨立的 D 輸入和 Q 輸出，由公共時鐘（CP）和輸出使能（OE）控制。當 OE 為低電平時，輸出使能；當 OE 為高電平時，輸出呈高阻態。適用於總線導向系統。

詳細技術參數

核心特性

• 高速：tPD = 6.5 ns（典型值，VCC=5V）
• 低功耗：ICC = 4 µA（最大值，TA=25°C）
• 平衡傳播延遲：tPLH ≈ tPHL
• 三態輸出，適用於總線應用
• 邊沿觸發 D 型觸發器，帶緩衝時鐘和輸出使能
• 輸入/輸出接口能力：2V 至 6V
• 對稱輸出阻抗：|IOH| = IOL = 24 mA（最小值）
• ESD 保護：HBM 2kV，MM 200V
• 閂鎖性能超過 500 mA（符合 JESD 78 Class II）
• 綠色封裝：無鉛、無鹵素

典型應用場景

• 5G 基站控制邏輯：數據緩衝與同步
• 汽車儀表盤顯示：傳感器數據寄存器存儲
• 工業 PLC：I/O 擴展與狀態存儲
• 消費電子：機頂盒、遊戲主機數據總線
• 醫療設備：病人監護數據採集
• 電信：線路卡寄存器與緩衝

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 74AC374TTR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
