HDMI2C1-6C1 ST ESD Protection | 18-QFN (3.5X3.5) | 4-Channel, ±8kV Contact

Product Overview

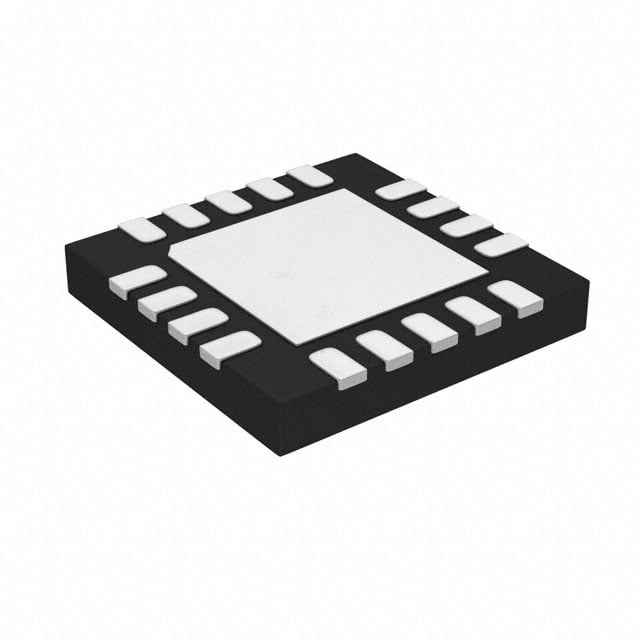

The HDMI2C1-6C1 from STMicroelectronics is a high-performance ESD protection device designed for HDMI interfaces. Housed in a compact 18-QFN (3.5x3.5mm) package, it provides robust protection against electrostatic discharges up to ±8kV contact and ±15kV air discharge per IEC 61000-4-2. This device integrates four low-capacitance (0.6pF typical) ESD protection diodes, ensuring signal integrity for high-speed data lines up to 6Gbps. It is ideal for protecting HDMI 2.0, DisplayPort, and other high-speed differential pairs in consumer and industrial applications.

Detailed Technical Specifications

Key Features

• Ultra-low capacitance (0.6pF) for high-speed signal integrity
• High ESD robustness: ±8kV contact, ±15kV air discharge
• Four independent protection channels in a small 18-QFN package
• Low leakage current (< 0.1µA) for power-sensitive designs
• Compliant with HDMI 2.0, DisplayPort 1.4, and USB 3.0 standards
• RoHS and Halogen-free

Target Applications

The HDMI2C1-6C1 is suitable for a wide range of applications requiring high-speed data line protection, including:

• HDMI 2.0 ports in 4K/8K TVs, monitors, and projectors
• DisplayPort interfaces in laptops and docking stations
• USB 3.0/3.1 Type-C connectors in smartphones and tablets
• Automotive infotainment systems (e.g., dashboard displays, rear-seat entertainment)
• 5G base station control boards and data links
• Industrial cameras and machine vision systems

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for HDMI2C1-6C1. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
