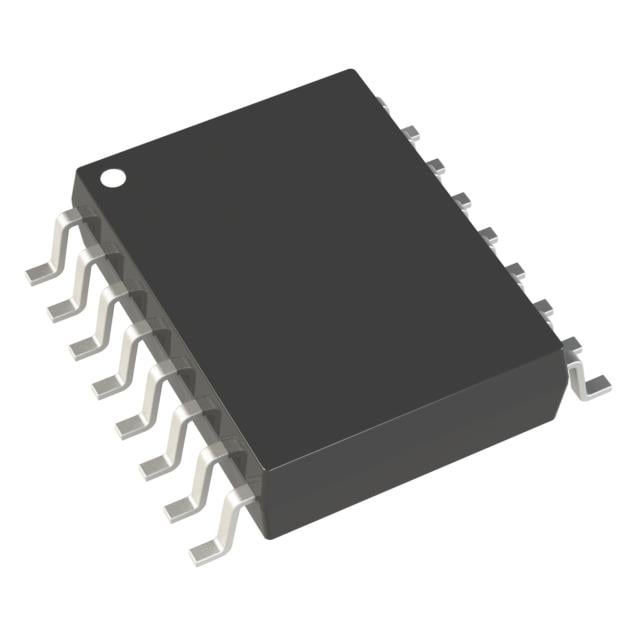

ISOSD61TR ST Isolator | 16-SO | 5kV Isolation, 100Mbps Data Rate

Product Overview

The ISOSD61TR from STMicroelectronics is a high-performance galvanic isolator designed for robust signal isolation in industrial and automotive applications. Housed in a compact 16-SO package, it provides 5kV isolation voltage and supports data rates up to 100Mbps, ensuring reliable data transmission in noisy environments.

Detailed Technical Specifications

Key Features

• 5kV galvanic isolation per UL1577
• High data rate up to 100Mbps
• Low propagation delay (13ns typical)
• Wide supply voltage range (3.0V to 5.5V)
• High common-mode transient immunity (>25kV/µs)
• Fail-safe output
• RoHS compliant

Target Applications

• 5G base station power supplies
• Automotive dashboard displays
• Industrial motor drives
• Solar inverters
• Medical equipment

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for ISOSD61TR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

ISOSD61TR 是意法半導體推出的高性能隔離器，採用緊湊的 16-SO 封裝，提供 5kV 隔離電壓和 100Mbps 數據速率，確保在嘈雜環境中可靠傳輸信號。

詳細技術參數

核心特性

• 5kV 隔離電壓（UL1577）
• 高達 100Mbps 的數據速率
• 低傳播延遲（典型 13ns）
• 寬電源電壓範圍（3.0V 至 5.5V）
• 高共模瞬變抗擾度（>25kV/µs）
• 故障安全輸出
• 符合 RoHS 標準

典型應用場景

• 5G 基站電源
• 汽車儀表盤顯示
• 工業電機驅動
• 太陽能逆變器
• 醫療設備

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 ISOSD61TR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
