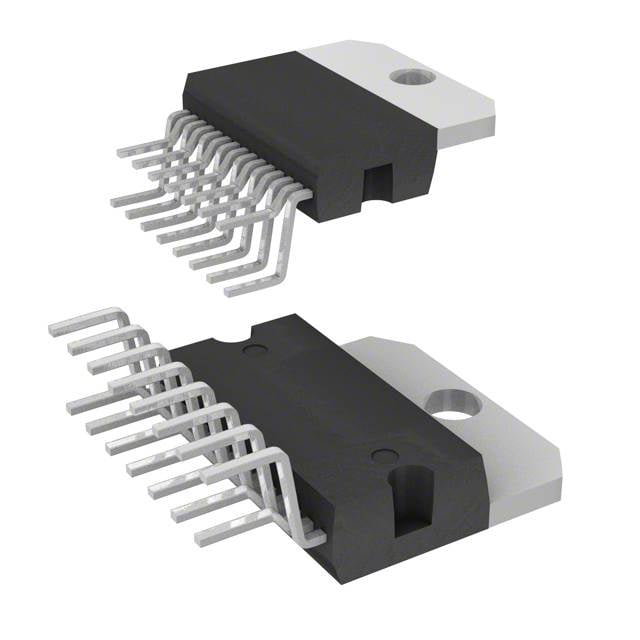

L298N ST Motor Driver | Multiwatt-15 (Vertical, Bent & Staggered Leads) | Dual Full-Bridge, 4A Output

Product Overview

The L298N is a high-voltage, high-current dual full-bridge motor driver designed by STMicroelectronics. It is capable of driving inductive loads such as relays, solenoids, DC motors, and stepper motors. The device features two enable inputs and four input pins, allowing independent control of two DC motors or one bipolar stepper motor. With an operating supply voltage up to 46V and a total DC current of up to 4A, the L298N is ideal for industrial and automotive applications requiring robust motor control.

Detailed Technical Specifications

Key Features

• Dual full-bridge driver for two DC motors or one stepper motor
• High operating voltage range (4.8V to 46V)
• High output current capability (2A per channel, 4A total)
• Built-in thermal shutdown and overcurrent protection
• TTL/CMOS compatible logic inputs
• Low saturation voltage (1.2V typical at 1A)
• Available in Multiwatt-15 package with vertical, bent, and staggered leads for easy PCB mounting

Target Applications

• Industrial automation: Robotic arms, conveyor belts, CNC machines
• Automotive: Electric window lifts, seat adjusters, HVAC actuators
• Consumer electronics: 3D printers, RC vehicles, smart home devices
• Medical equipment: Infusion pumps, diagnostic devices
• 5G base station: Antenna tilt control, cooling fan drivers
• Dashboard: Instrument cluster stepper motors

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for L298N. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
