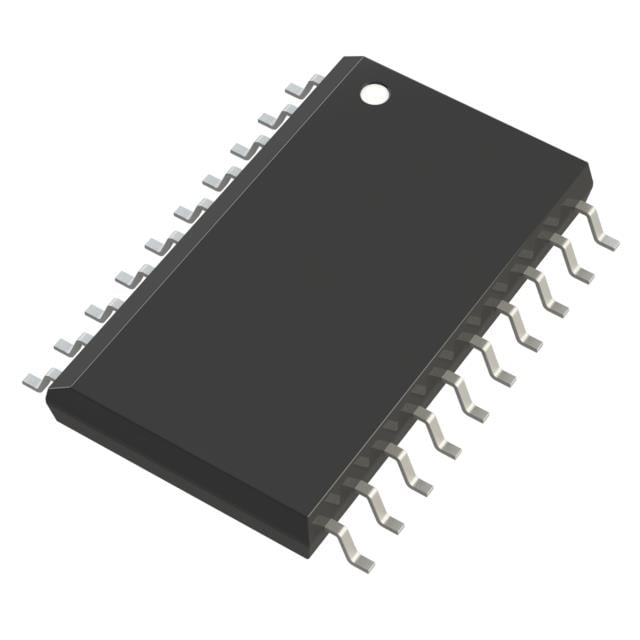

L6225D ST DMOS Driver | 20-SO | 1.4A, 52V, Dual Full Bridge

Product Overview

The L6225D is a dual full-bridge DMOS driver manufactured by STMicroelectronics, designed for driving bipolar stepper motors or two DC motors. It integrates two independent full bridges, each capable of delivering up to 1.4 A RMS current and operating from a supply voltage up to 52 V. The device features a non-dissipative overcurrent protection, thermal shutdown, and a cross-conduction protection. The L6225D is housed in a 20-pin SO package, making it suitable for space-constrained applications.

Detailed Technical Specifications

Key Features

• Dual full-bridge configuration for two DC motors or one bipolar stepper motor
• Low R_DS(on) DMOS outputs for high efficiency
• Non-dissipative overcurrent detection and protection
• Thermal shutdown with hysteresis
• Cross-conduction protection
• Under-voltage lockout (UVLO) on logic supply
• Enable and direction control inputs
• Fast decay mode for stepper motor microstepping

Target Applications

• Bipolar stepper motor drivers for 3D printers, CNC machines, and robotics
• DC motor drivers for automotive actuators (e.g., mirror adjustment, seat control)
• Industrial automation: conveyor belt motors, valve control
• Office equipment: printer paper feed, scanner mechanisms
• Consumer electronics: camera auto-focus, gimbal stabilization
