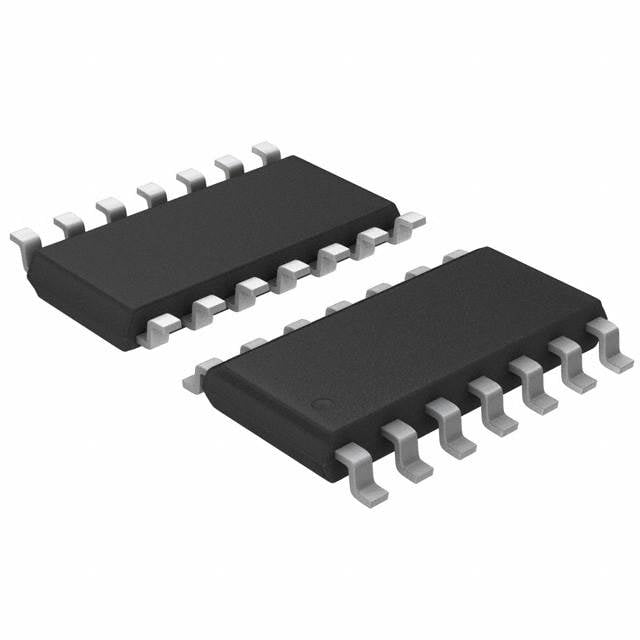

L6563S ST Power Factor Correction IC | 14-SOIC | Transition-Mode, High Voltage

Product Overview

The L6563S is a high-performance transition-mode Power Factor Correction (PFC) controller from STMicroelectronics, designed to achieve near-unity power factor and low harmonic distortion in AC-DC power supplies. Housed in a compact 14-SOIC package, it integrates advanced features such as high-voltage startup, low quiescent current, and comprehensive protection functions. The device operates in transition mode (TM) to optimize efficiency and reduce EMI, making it ideal for applications requiring compliance with IEC 61000-3-2 standards.

Detailed Technical Specifications

Key Features

• Transition-mode (TM) PFC controller for high efficiency
• High-voltage startup capability (up to 800V)
• Low startup current (30 µA) and low quiescent current (3.5 mA)
• Programmable output voltage and overvoltage protection
• Boost inductor saturation detection
• Brownout protection and AC line feed-forward
• Internal OTP (Over-Temperature Protection)
• Compliant with IEC 61000-3-2 harmonic limits

Target Applications

• AC-DC adapters and chargers for laptops and smartphones
• LED lighting drivers (e.g., street lighting, industrial lighting)
• Power supplies for 5G base stations and telecom equipment
• Industrial power supplies for motor drives and automation
• Home appliances (e.g., air conditioners, refrigerators)
• Automotive onboard chargers and DC-DC converters

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for L6563S. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
