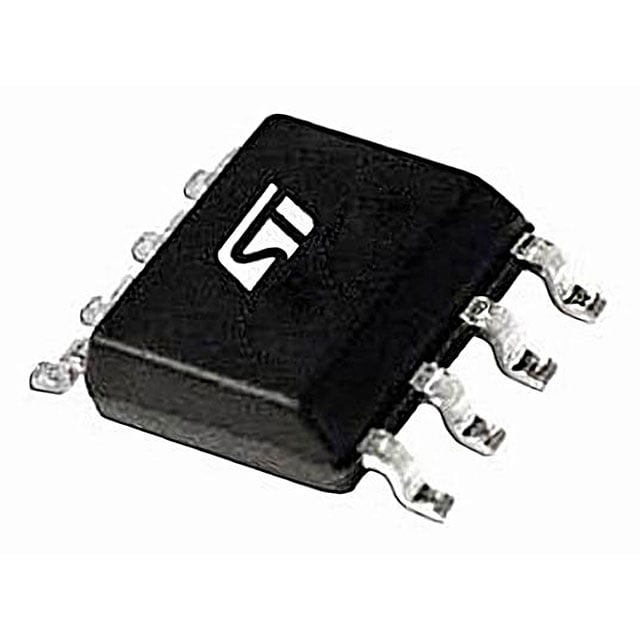

L6565D ST Transition-Mode PFC Controller | 8-SOIC | 10-22V Supply, 50-300kHz

Product Overview

The L6565D is a current-mode primary controller specifically designed for high-performance power factor correction (PFC) boost converters operating in transition mode (TM). Manufactured by STMicroelectronics, this device integrates advanced features to achieve near-unity power factor and low total harmonic distortion (THD) in AC-DC applications. Housed in a compact 8-SOIC package, the L6565D offers a wide supply voltage range (10V to 22V) and programmable switching frequency up to 300 kHz, making it suitable for medium-power PFC stages in industrial and consumer electronics.

Detailed Technical Specifications

Key Features

• Transition-mode (TM) operation for simplified design and low EMI
• Proprietary multiplier for near-unity power factor
• Low start-up current (50 µA) for efficient standby
• Programmable switching frequency via external resistor
• Comprehensive protection: OVP, OCP, brownout, feedback loop failure
• High-voltage start-up capability (up to 600 V)
• 8-SOIC package for space-constrained designs

Target Applications

• AC-DC power supplies for 5G base stations (e.g., rectifier modules)
• LED lighting drivers (e.g., street lighting, industrial luminaires)
• Industrial power adapters (e.g., for automation controllers)
• Consumer electronics (e.g., LCD TV power boards, gaming consoles)
• Automotive dashboard power supplies (e.g., infotainment systems)
