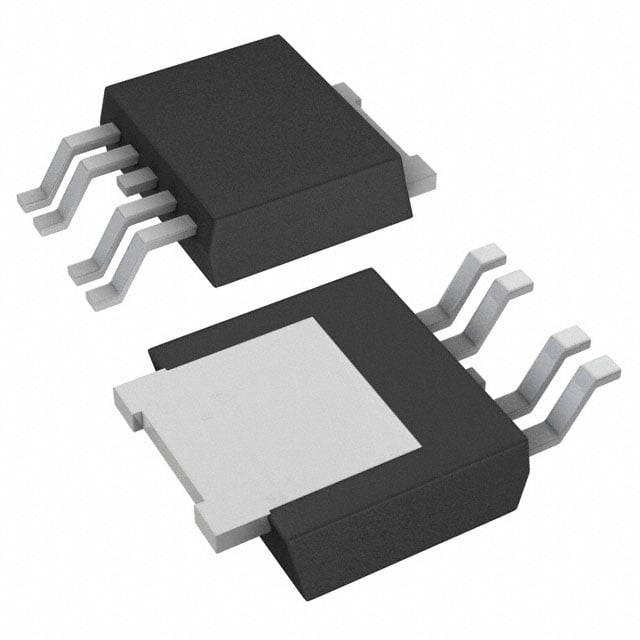

LD29150PTR ST LDO Regulator | PPAK | 1.5A, Adjustable Output

Product Overview

The LD29150PTR is a high-performance, low-dropout (LDO) voltage regulator from STMicroelectronics, designed to deliver up to 1.5A of output current with a dropout voltage as low as 350mV at full load. Housed in a PPAK (PowerPAK) package, it offers excellent thermal performance and space-saving footprint, making it ideal for power-sensitive applications. The device features an adjustable output voltage from 1.25V to 5.5V, with a typical accuracy of ±1%. It includes built-in protection features such as current limiting, thermal shutdown, and reverse battery protection, ensuring robust operation in demanding environments.

Detailed Technical Specifications

Key Features

• High output current capability: 1.5A
• Low dropout voltage: 350mV typical at 1.5A
• Adjustable output voltage from 1.25V to 5.5V
• High accuracy: ±1% output voltage tolerance
• Low quiescent current: 1.5mA typical
• Shutdown mode with <1µA current consumption
• Built-in protection: current limit, thermal shutdown, reverse battery
• PPAK package for enhanced thermal dissipation
• Wide operating temperature range: -40°C to +125°C

Target Applications

• 5G base station power management
• Automotive infotainment and dashboard systems
• Industrial control and automation equipment
• Telecommunications and networking devices
• Medical equipment requiring stable power
• Portable and battery-powered devices

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LD29150PTR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

LD29150PTR 是意法半導體（STMicroelectronics）推出的一款高性能低壓差線性穩壓器（LDO），可提供高達 1.5A 的輸出電流，滿載時典型壓差僅為 350mV。採用 PPAK（PowerPAK）封裝，具有優異的散熱性能和緊湊的佔板面積，非常適合對功耗敏感的應用。該器件支持 1.25V 至 5.5V 的可調輸出電壓，典型精度為 ±1%。內置限流、熱關斷和反極性保護等保護功能，確保在惡劣環境下穩定運行。

詳細技術參數

核心特性

• 高輸出電流能力：1.5A
• 低壓差：1.5A 時典型值 350mV
• 可調輸出電壓：1.25V 至 5.5V
• 高精度：±1% 輸出電壓容差
• 低靜態電流：典型值 1.5mA
• 關斷模式電流 <1µA
• 內置保護：限流、熱關斷、反極性
• PPAK 封裝，增強散熱
• 寬工作溫度範圍：-40°C 至 +125°C

典型應用場景

• 5G 基站電源管理
• 汽車信息娛樂系統和儀表板
• 工業控制與自動化設備
• 電信和網絡設備
• 醫療設備（需穩定電源）
• 便攜式和電池供電設備

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 LD29150PTR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
