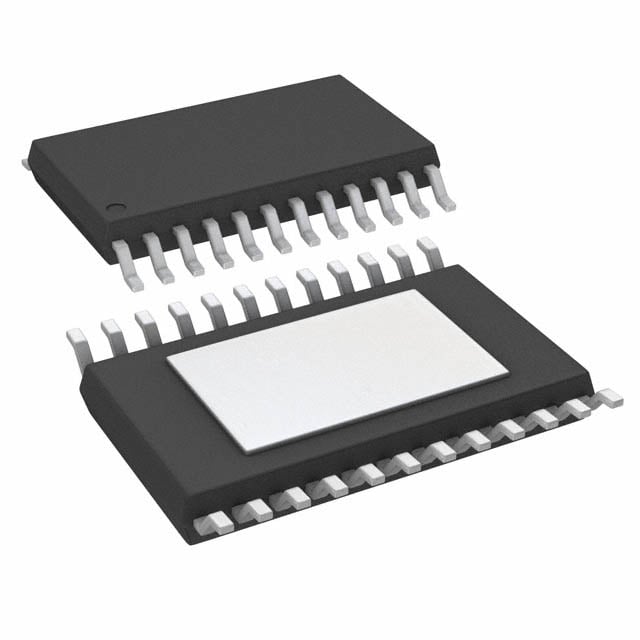

LED1642GWXTTR ST LED Driver | 24-TSSOP-EP | 16-Channel, 40V, 5.5V-38V

Product Overview

The LED1642GWXTTR from STMicroelectronics is a 16-channel constant current LED driver designed for high-performance lighting applications. It operates from a supply voltage of 5.5V to 38V and can drive up to 40V per output. The device features a serial data interface with a 30MHz clock frequency, enabling precise control of each LED channel. The 24-TSSOP-EP package with exposed pad ensures efficient thermal dissipation, making it suitable for demanding environments.

Detailed Technical Specifications

Key Features

• 16 constant-current outputs with 8-bit PWM dimming
• Low dropout voltage (0.5V typical at 20 mA)
• Built-in error detection for open and shorted LEDs
• Thermal shutdown protection
• Wide supply voltage range for versatile applications
• Compact 24-TSSOP-EP package for space-constrained designs

Target Applications

• 5G base station status indicators
• Automotive dashboard backlighting
• Industrial control panel LEDs
• LED signage and displays
• General-purpose constant current LED driving

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LED1642GWXTTR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
