LM339D ST Comparator | 14-SO | Quad, Low Power, 2V to 36V

Product Overview

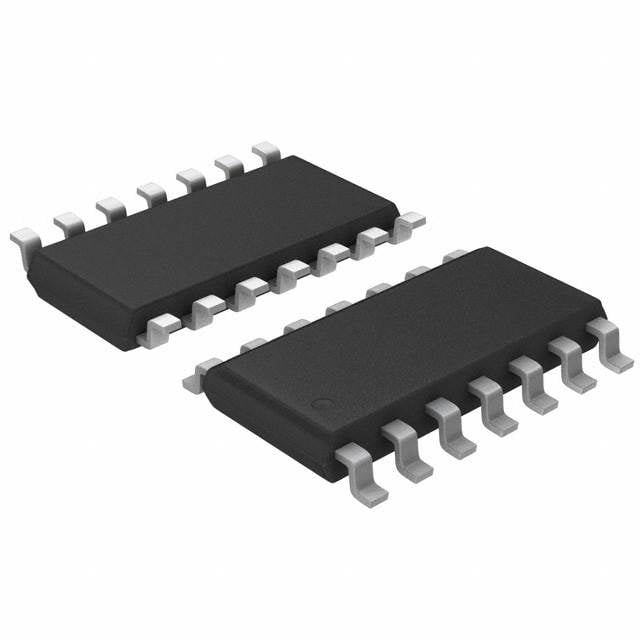

The LM339D is a quad low-power voltage comparator from STMicroelectronics, designed for applications requiring high precision and low power consumption. It operates from a single power supply over a wide voltage range of 2V to 36V, or from dual supplies of ±1V to ±18V. The device features open-collector outputs that can be connected to various logic families, making it highly versatile for mixed-signal systems. Packaged in a compact 14-SO (SOIC-14) package, the LM339D is ideal for space-constrained designs.

Detailed Technical Specifications

Key Features

• Quad comparators in a single package
• Wide supply voltage range: 2V to 36V
• Low supply current: 0.4 mA per comparator
• Low input offset voltage: ±2 mV typical
• Open-collector outputs for wired-AND connection
• Compatible with TTL, DTL, ECL, MOS, and CMOS logic
• ESD protection: 2 kV HBM
• RoHS compliant

Target Applications

The LM339D is suitable for a wide range of applications including:

• 5G base station power supply monitoring and fault detection
• Automotive dashboard warning systems (e.g., low battery, over-temperature)
• Industrial motor control and overcurrent protection
• Battery management systems for voltage level detection
• Signal conditioning and threshold detection in IoT devices
• Precision oscillators and timing circuits

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LM339D. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
