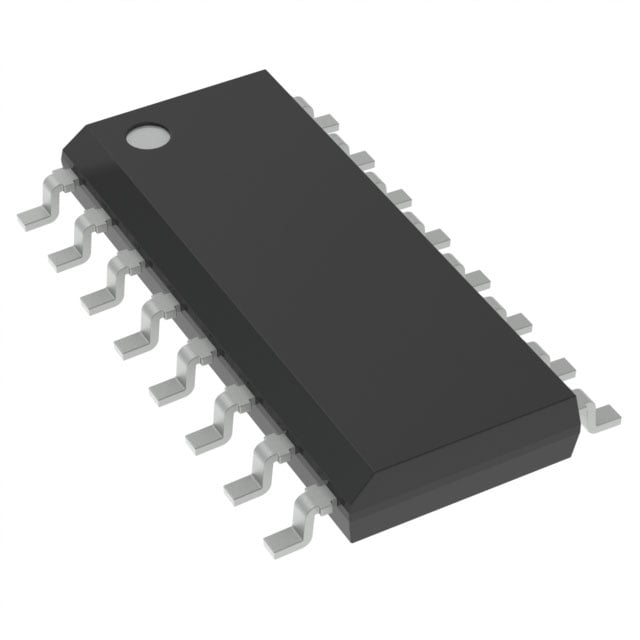

M74HC157RM13TR ST Multiplexer | 16-SO | 2V-6V, 5.2ns

Product Overview

The M74HC157RM13TR is a high-speed CMOS quad 2-channel multiplexer manufactured by STMicroelectronics. It selects one of two 4-bit data inputs (A or B) based on the select input (S) and provides the selected data to the output (Y). The device features a common enable input (E) that forces all outputs to low when high. Operating from 2V to 6V, it offers typical propagation delays of 5.2ns at 5V, making it suitable for high-speed data routing in digital systems.

Detailed Technical Specifications

Key Features

• High-speed: tpd = 5.2ns (typ) at Vcc=5V
• Low power consumption: 80µA max ICC
• Wide operating voltage range: 2V to 6V
• High noise immunity: VNIH = VNIL = 28% Vcc (min)
• Symmetrical output impedance: |IOH| = IOL = 4mA (min)
• Balanced propagation delays: tPLH ≈ tPHL
• Operating temperature range: -55°C to +125°C
• Pin and function compatible with 74HC157

Target Applications

• Data routing in 5G base station control boards
• Signal selection in automotive dashboard displays
• Multiplexing in industrial PLC I/O modules
• Address decoding in memory systems
• Bus switching in networking equipment (e.g., routers, switches)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for M74HC157RM13TR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
