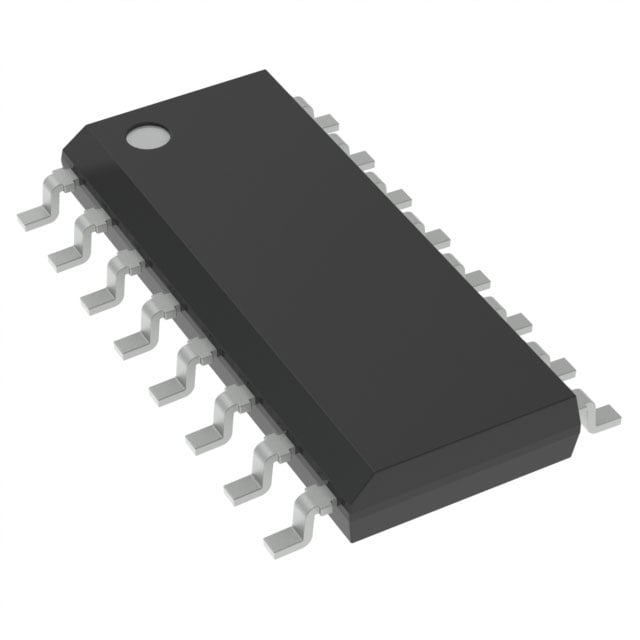

SG2525AP ST PWM Controller | 16-SOIC | 8V-35V, 400kHz

Product Overview

The SG2525AP from STMicroelectronics is a high-performance pulse-width modulation (PWM) controller designed for a wide range of power conversion applications. It operates from a supply voltage of 8V to 35V and features a 400kHz maximum oscillator frequency. The device is housed in a compact 16-SOIC package (0.154", 3.90mm width), making it suitable for space-constrained designs. The SG2525AP integrates all necessary functions for single-ended or push-pull topologies, including an onboard 5.1V reference, error amplifier, soft-start, and shutdown control.

Detailed Technical Specifications

Key Features

• 8V to 35V wide supply voltage range
• 400kHz maximum oscillator frequency
• 5.1V ±1% precision reference
• Soft-start and shutdown control
• Under-voltage lockout (UVLO)
• Push-pull and single-ended operation
• Low standby current

Target Applications

The SG2525AP is ideal for DC-DC converters, inverters, and power supplies in applications such as 5G base stations, automotive dashboard power systems, industrial motor drives, and telecom equipment. Specific examples include isolated DC-DC converters for 5G remote radio units, push-pull converters for automotive infotainment systems, and offline flyback supplies for industrial sensors.
