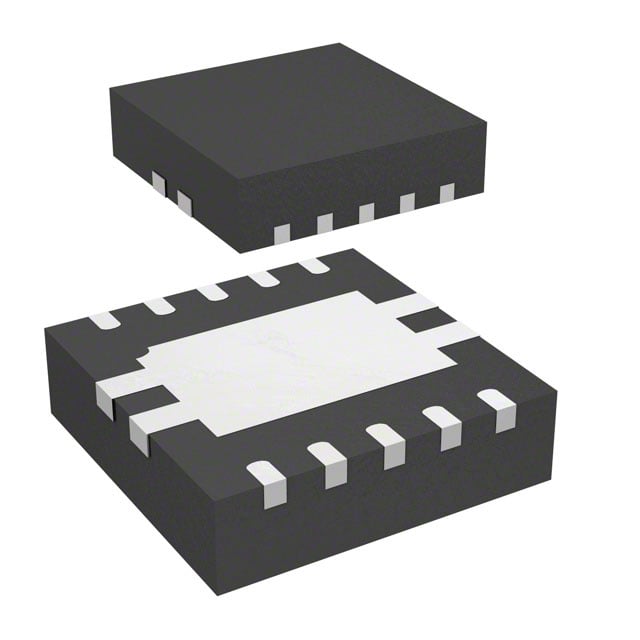

ST1S50PUR ST DC-DC Converter | 10-VFDFPN（3x3） | 4A Output, 4.5-18V Input

Product Overview

The ST1S50PUR is a high-efficiency, monolithic synchronous step-down DC-DC converter from STMicroelectronics. It is designed to deliver up to 4A of continuous output current over a wide input voltage range from 4.5V to 18V. The device integrates low RDS(on) power switches, which minimizes external component count and simplifies PCB layout. The ST1S50PUR is housed in a compact 10-VFDFPN (3x3 mm) package, making it ideal for space-constrained applications. With its high switching frequency (up to 1.5 MHz), the converter enables the use of small inductors and capacitors, further reducing the overall solution footprint. The device features a fixed 3.3V output voltage option, but can be adjusted externally via a resistor divider. Protection features include overcurrent protection, thermal shutdown, and undervoltage lockout.

Detailed Technical Specifications

Key Features

• Integrated 4A power switches with low RDS(on)
• Wide input voltage range: 4.5V to 18V
• High switching frequency up to 1.5 MHz
• Adjustable output voltage from 0.8V to VIN
• High efficiency up to 95%
• Compact 10-VFDFPN (3x3 mm) package
• Overcurrent, overtemperature, and undervoltage protection
• Soft-start and enable function

Target Applications

• 5G base station power supplies
• Automotive dashboard and infotainment systems
• Industrial control systems
• Telecom and networking equipment
• Portable and battery-powered devices
• Point-of-load (POL) regulation

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for ST1S50PUR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

ST1S50PUR 是意法半导体推出的一款高效率、单片同步降压 DC-DC 转换器。它能够在 4.5V 至 18V 的宽输入电压范围内提供高达 4A 的连续输出电流。该器件集成了低导通电阻（RDS(on)）的功率开关，最大限度地减少了外部元件数量并简化了 PCB 布局。ST1S50PUR 采用紧凑的 10-VFDFPN（3x3 mm）封装，非常适合空间受限的应用。凭借高达 1.5 MHz 的高开关频率，该转换器允许使用小型电感和电容，进一步减小整体解决方案的尺寸。该器件提供固定的 3.3V 输出电压选项，但也可通过电阻分压器进行外部调节。保护功能包括过流保护、热关断和欠压锁定。

詳細技術參數

核心特性

• 集成 4A 功率开关，低 RDS(on)
• 宽输入电压范围：4.5V 至 18V
• 高达 1.5 MHz 的高开关频率
• 可调输出电压：0.8V 至 VIN
• 高达 95% 的高效率
• 紧凑的 10-VFDFPN（3x3 mm）封装
• 过流、过温和欠压保护
• 软启动和使能功能

典型應用場景

• 5G 基站电源
• 汽车仪表盘和信息娱乐系统
• 工业控制系统
• 电信和网络设备
• 便携式和电池供电设备
• 负载点（POL）调节

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 ST1S50PUR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
