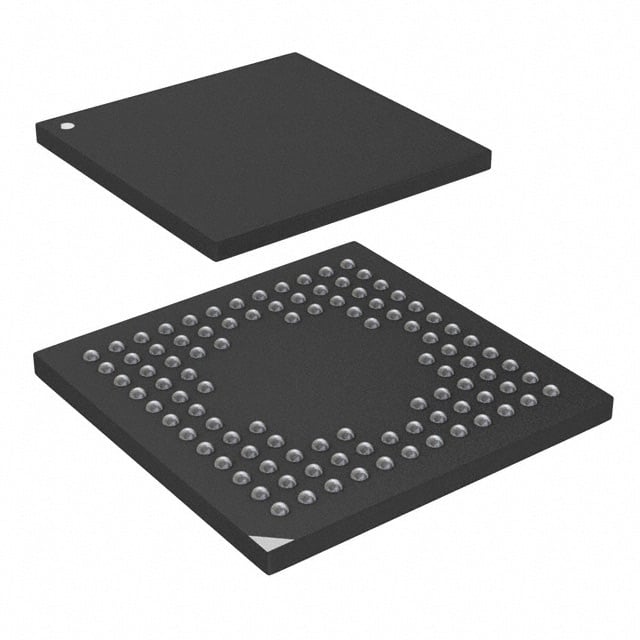

STM32F413VGH6 ST Microcontrollers | 100-UFBGA (7x7) | 1.5MB Flash, 320KB SRAM

Product Overview

The STM32F413VGH6 is a high-performance ARM Cortex-M4 32-bit RISC core microcontroller from STMicroelectronics, operating at up to 100 MHz. It features a floating-point unit (FPU) single precision, a full set of DSP instructions, and a memory protection unit (MPU) for enhanced application security. This device integrates up to 1.5 Mbytes of Flash memory and 320 Kbytes of SRAM, along with extensive peripherals such as multiple SPI, I2C, USART, USB OTG, CAN, and advanced analog features. The 100-pin UFBGA package (7x7 mm) offers a compact footprint suitable for space-constrained applications.

Detailed Technical Specifications

Key Features

• ARM Cortex-M4 core with FPU and DSP instructions for efficient signal processing.
• Large memory capacity: 1.5 MB Flash and 320 KB SRAM for complex applications.
• Rich connectivity: multiple SPI, I2C, USART, CAN, USB OTG, and SDIO.
• Advanced analog: dual DAC, multiple ADCs, and operational amplifiers for sensor interfacing.
• Low-power modes: Sleep, Stop, and Standby for energy-sensitive designs.
• Hardware cryptographic acceleration: AES, DES, and hash functions.
• Compact 100-UFBGA package (7x7 mm) for space-constrained designs.

Target Applications

• Industrial control systems (e.g., PLCs, motor drives)
• 5G base station control and monitoring
• Automotive dashboard and infotainment systems
• Medical devices (e.g., patient monitors, portable diagnostic tools)
• Consumer electronics (e.g., smart home hubs, gaming peripherals)
• IoT gateways and edge computing devices

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for STM32F413VGH6. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

STM32F413VGH6 是意法半導體推出的一款高性能 ARM Cortex-M4 32 位 RISC 內核微控制器，最高工作頻率 100 MHz。它配備單精度浮點運算單元（FPU）、完整的 DSP 指令集和內存保護單元（MPU），可增強應用安全性。該器件集成高達 1.5 MB 的 Flash 存儲器和 320 KB 的 SRAM，並提供豐富的外設，包括多個 SPI、I2C、USART、USB OTG、CAN 以及先進的模擬功能。100 引腳 UFBGA 封裝（7x7 mm）緊湊小巧，適合空間受限的應用。

詳細技術參數

核心特性

• ARM Cortex-M4 內核，帶 FPU 和 DSP 指令，高效信號處理。
• 大容量存儲：1.5 MB Flash 和 320 KB SRAM，滿足複雜應用。
• 豐富連接：多個 SPI、I2C、USART、CAN、USB OTG 和 SDIO。
• 先進模擬：雙 DAC、多 ADC 和運算放大器，便於傳感器接口。
• 低功耗模式：睡眠、停止和待機，適合節能設計。
• 硬件加密加速：AES、DES 和哈希函數。
• 緊湊 100-UFBGA 封裝（7x7 mm），適合空間受限設計。

典型應用場景

• 工業控制系統（例如 PLC、電機驅動）
• 5G 基站控制與監控
• 汽車儀表盤和信息娛樂系統
• 醫療設備（例如病人監護儀、便攜診斷工具）
• 消費電子（例如智能家居中樞、遊戲外設）
• 物聯網網關和邊緣計算設備

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 STM32F413VGH6 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
