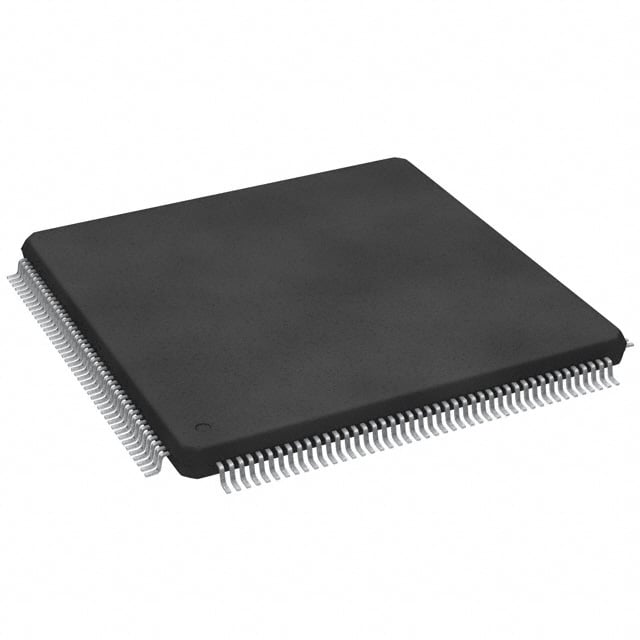

STM32F746IGT6 ST MCU | 176-LQFP (24X24) | 216MHz, 1MB Flash

Product Overview

The STM32F746IGT6 is a high-performance ARM Cortex-M7 based microcontroller from STMicroelectronics, operating at up to 216 MHz. It features 1 MB of Flash memory and 320 KB of SRAM, along with a rich set of peripherals including TFT-LCD controller, Ethernet MAC, camera interface, and cryptographic acceleration. Housed in a 176-pin LQFP package (24x24 mm), it is ideal for advanced embedded applications requiring high processing power and connectivity.

Detailed Technical Specifications

Key Features

• ARM Cortex-M7 core with single-precision FPU and DSP instructions
• 1 MB Flash with read-while-write support
• 320 KB SRAM including 64 KB of instruction cache and 64 KB of data cache
• Rich connectivity: Ethernet MAC, USB OTG, CAN 2.0B, up to 6x SPI, 4x I2C, 8x UART
• Advanced multimedia: TFT-LCD controller with up to XGA resolution, Chrom-ART Accelerator for 2D graphics
• Security: AES, DES, TDES, SHA-1, SHA-2, and true random number generator
• Analog: 3x 12-bit ADC, 2x 12-bit DAC
• Operating temperature: -40°C to +85°C

Target Applications

• Industrial control systems (e.g., PLC, motor drives)
• Human-machine interfaces (HMI) with graphical displays
• Networking equipment (e.g., 5G base station control, IoT gateways)
• Automotive infotainment and dashboard systems
• Medical devices (e.g., patient monitors, diagnostic equipment)
• Audio processing and voice recognition systems

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for STM32F746IGT6. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

STM32F746IGT6 是意法半導體基於 ARM Cortex-M7 內核的高性能微控制器，最高工作頻率 216 MHz。它配備 1 MB 快閃記憶體和 320 KB SRAM，並整合了 TFT-LCD 控制器、乙太網路 MAC、攝像頭介面和加密加速器等豐富外設。採用 176 引腳 LQFP 封裝（24x24 mm），適用於需要高處理能力和連接性的高級嵌入式應用。

詳細技術參數

核心特性

• ARM Cortex-M7 內核，帶單精度 FPU 和 DSP 指令
• 1 MB 快閃記憶體，支持讀寫同時操作
• 320 KB SRAM，包括 64 KB 指令快取和 64 KB 數據快取
• 豐富連接性：乙太網路 MAC、USB OTG、CAN 2.0B、最多 6 個 SPI、4 個 I2C、8 個 UART
• 高級多媒體：TFT-LCD 控制器（最高 XGA 解析度）、Chrom-ART 加速器用於 2D 圖形
• 安全性：AES、DES、TDES、SHA-1、SHA-2 和真隨機數生成器
• 模擬：3 個 12 位 ADC、2 個 12 位 DAC
• 工作溫度：-40°C 至 +85°C

典型應用場景

• 工業控制系統（例如 PLC、電機驅動）
• 帶圖形顯示的人機界面（HMI）
• 網路設備（例如 5G 基站控制、物聯網網關）
• 汽車資訊娛樂和儀表板系統
• 醫療設備（例如病人監護儀、診斷設備）
• 音頻處理和語音識別系統

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 STM32F746IGT6 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
