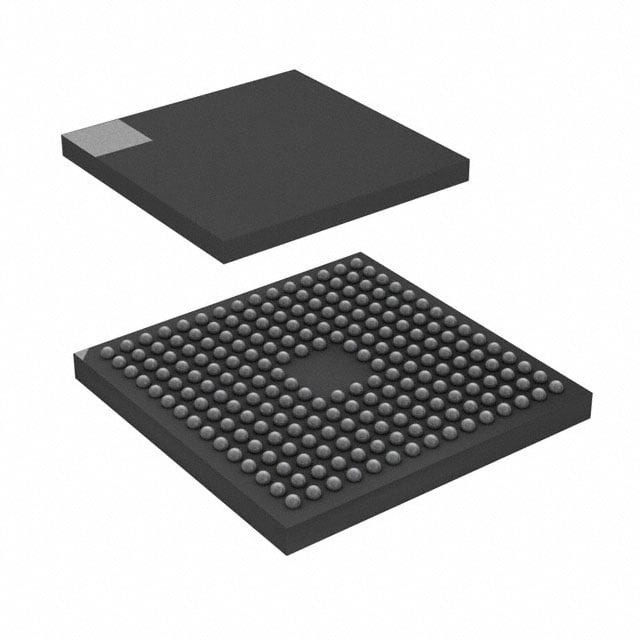

STM32F756NGH6 ST MCU | 216-TFBGA (13X13) | ARM Cortex-M7, 1MB Flash

Product Overview

The STM32F756NGH6 is a high-performance 32-bit microcontroller from STMicroelectronics, based on the ARM Cortex-M7 core with a floating-point unit (FPU). It operates at up to 216 MHz and integrates up to 1 MB of Flash memory and 320 KB of SRAM. The device features a rich set of peripherals including multiple communication interfaces, advanced analog functions, and security features. Housed in a 216-ball TFBGA package (13x13 mm), it is ideal for demanding applications requiring high processing power and connectivity.

Detailed Technical Specifications

Key Features

• ARM Cortex-M7 core with double-precision FPU and L1 cache (16 KB I-cache + 16 KB D-cache)
• High performance: 1080 CoreMark at 216 MHz
• Rich connectivity: Ethernet MAC, USB OTG HS/FS, Camera interface (DCMI), Chrom-ART Accelerator
• Advanced security: Hardware cryptographic accelerator, true random number generator, secure boot
• Low-power modes: Sleep, Stop, Standby with VBAT for RTC and backup registers
• Up to 168 I/Os with interrupt capability
• 12-bit ADCs with up to 7.2 MSPS, DACs with output buffer
• Flexible memory controller (FMC) for external SRAM, SDRAM, NOR/NAND Flash
• Quad-SPI interface for serial Flash memory
• Audio: SAI, SPDIFRX, I2S

Target Applications

• Industrial control: PLCs, motor drives, robotics
• Consumer electronics: Smart home hubs, gaming peripherals
• Automotive: Dashboard controllers, infotainment systems
• IoT gateways: 5G base station control, edge computing nodes
• Medical devices: Patient monitors, diagnostic equipment
• Audio processing: Professional audio mixers, soundbars

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for STM32F756NGH6. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

STM32F756NGH6 是意法半導體推出的一款高性能32位微控制器，基於ARM Cortex-M7內核，配備浮點運算單元（FPU）。最高工作頻率216 MHz，集成高達1 MB Flash存儲器和320 KB SRAM。該器件擁有豐富的外設，包括多種通信接口、先進的模擬功能和安全特性。採用216-ball TFBGA封裝（13x13 mm），適用於需要高處理能力和連接性的苛刻應用。

詳細技術參數

核心特性

• ARM Cortex-M7內核，雙精度FPU和L1緩存（16 KB I-cache + 16 KB D-cache）
• 高性能：216 MHz下1080 CoreMark
• 豐富的連接性：以太網MAC, USB OTG HS/FS, 攝像頭接口（DCMI）, Chrom-ART加速器
• 先進的安全功能：硬件加密加速器，真隨機數發生器，安全啟動
• 低功耗模式：睡眠、停止、待機，帶VBAT備份RTC和備份寄存器
• 最多168個I/O，支持中斷
• 12位ADC最高7.2 MSPS，DAC帶輸出緩衝
• 靈活的存儲控制器（FMC）支持外部SRAM、SDRAM、NOR/NAND Flash
• Quad-SPI接口用於串行Flash存儲器
• 音頻：SAI, SPDIFRX, I2S

典型應用場景

• 工業控制：PLC、電機驅動、機器人
• 消費電子：智能家居中樞、遊戲外設
• 汽車電子：儀表盤控制器、信息娛樂系統
• 物聯網網關：5G基站控制、邊緣計算節點
• 醫療設備：病人監護儀、診斷設備
• 音頻處理：專業調音台、條形音箱

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 STM32F756NGH6 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
