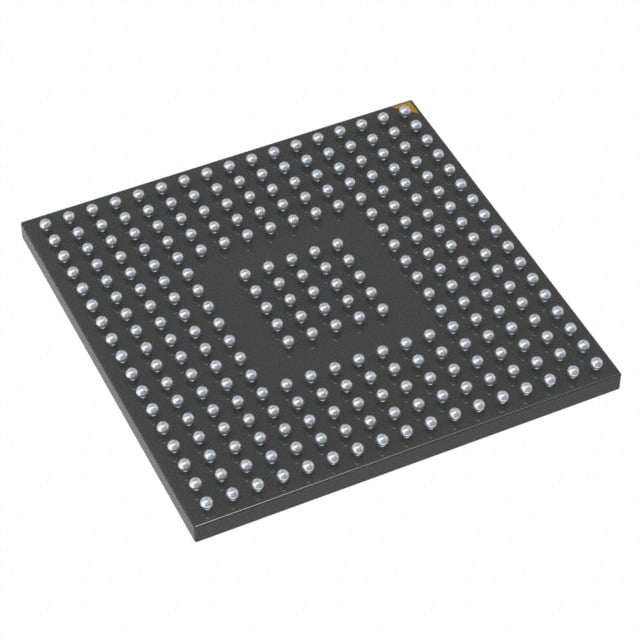

STM32F765IIK6 ST MCU | 176+25UFBGA(10x10) | 2MB Flash, 512KB SRAM

Product Overview

The STM32F765IIK6 is a high-performance ARM Cortex-M7 based microcontroller from STMicroelectronics, operating at up to 216 MHz. It features 2 MB of Flash memory and 512 KB of SRAM, making it ideal for demanding applications requiring intensive computation and real-time processing. The device is housed in a compact 176+25 UFBGA (10x10 mm) package, offering a rich set of peripherals including multiple communication interfaces, advanced analog features, and cryptographic acceleration.

Detailed Technical Specifications

Key Features

• ARM Cortex-M7 core with single-precision FPU and DSP instructions
• 2 MB Flash with dual-bank support for read-while-write
• 512 KB SRAM including 128 KB of tightly coupled memory (TCM)
• Chrom-ART Accelerator for advanced graphics
• Hardware JPEG codec
• True random number generator (TRNG)
• Up to 140 GPIOs with interrupt capability
• Rich analog peripherals: 3 ADCs, 2 DACs, 2 comparators, 2 operational amplifiers
• Advanced motor control timers
• Ethernet MAC with IEEE 1588 precision time protocol
• USB OTG HS/FS with PHY
• SD/SDIO/MMC interface
• Camera interface (DCMI)
• Up to 22 communication interfaces
• Hardware cryptographic acceleration
• Dual DMA controllers
• Low-power modes: Sleep, Stop, Standby

Target Applications

• 5G base station control and monitoring
• Automotive dashboard and infotainment systems
• Industrial motor drives and PLCs
• Medical imaging and patient monitoring devices
• High-end audio processing and synthesis
• Smart home gateways and IoT hubs
• Robotics and drone flight controllers
• Advanced human-machine interfaces (HMI)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for STM32F765IIK6. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

STM32F765IIK6 是意法半導體推出的一款基於 ARM Cortex-M7 內核的高性能微控制器，最高工作頻率可達 216 MHz。它配備了 2 MB 快閃記憶體和 512 KB SRAM，非常適合需要密集計算和即時處理的應用。該器件採用緊湊的 176+25 UFBGA（10x10 mm）封裝，提供豐富的外設，包括多種通訊介面、先進的類比功能和加密加速器。

詳細技術參數

核心特性

• ARM Cortex-M7 內核，支援單精度浮點運算單元和 DSP 指令
• 2 MB 快閃記憶體，支援雙庫讀寫同時操作
• 512 KB SRAM，包括 128 KB 緊耦合記憶體（TCM）
• Chrom-ART 加速器，用於高級圖形處理
• 硬體 JPEG 編解碼器
• 真隨機數產生器（TRNG）
• 最多 140 個 GPIO，支援中斷功能
• 豐富的類比外設：3 個 ADC、2 個 DAC、2 個比較器、2 個運算放大器
• 先進的馬達控制計時器
• 乙太網路 MAC，支援 IEEE 1588 精確時間協定
• USB OTG HS/FS，內建 PHY
• SD/SDIO/MMC 介面
• 相機介面（DCMI）
• 最多 22 個通訊介面
• 硬體加密加速
• 雙 DMA 控制器
• 低功耗模式：睡眠、停止、待機

典型應用場景

• 5G 基地台控制與監控
• 汽車儀表板與資訊娛樂系統
• 工業馬達驅動與可程式邏輯控制器
• 醫療影像與病患監護設備
• 高階音頻處理與合成
• 智慧家庭閘道器與物聯網集線器
• 機器人與無人機飛行控制器
• 先進人機介面（HMI）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 STM32F765IIK6 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
