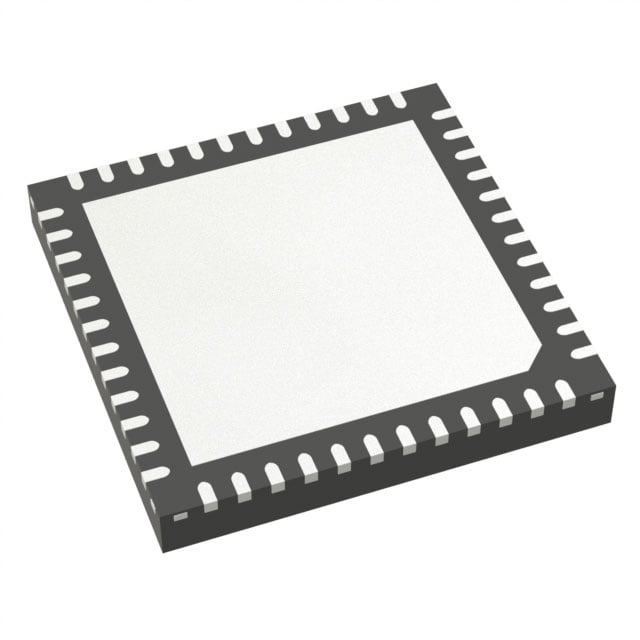

STM32L152C8U6 ST Microcontrollers | 48-UFQFPN (7x7) | 64KB Flash, 32MHz ARM Cortex-M3

Product Overview

The STM32L152C8U6 is a low-power ARM Cortex-M3 microcontroller from STMicroelectronics, part of the STM32L1 series. It features 64KB Flash memory, 10KB SRAM, and operates at up to 32 MHz. The device is housed in a compact 48-UFQFPN (7x7 mm) package, making it suitable for space-constrained applications. It offers a rich set of peripherals including USB, LCD driver, 12-bit ADC, DAC, comparators, and multiple communication interfaces (I2C, SPI, USART). The ultra-low-power consumption (down to 280 nA in standby mode) makes it ideal for battery-powered devices.

Detailed Technical Specifications

Key Features

• Ultra-low-power consumption: 280 nA standby with RTC, 1.1 μA stop mode
• Dynamic voltage scaling for power optimization
• Up to 32 MHz CPU performance
• Embedded LCD driver supporting up to 4x28 segments
• USB 2.0 Full Speed interface
• 12-bit ADC with 16 channels, 12-bit DAC with 2 channels
• Multiple communication interfaces: I2C, SPI, USART
• Up to 37 GPIOs
• Hardware CRC, RTC, and tamper detection
• Operating temperature: -40°C to +85°C

Target Applications

The STM32L152C8U6 is ideal for a wide range of low-power and portable applications, including:

• Battery-powered devices: smart meters, portable medical devices (e.g., glucose meters, pulse oximeters)
• Industrial sensors and actuators
• Consumer electronics: smart watches, fitness trackers, remote controls
• Building automation: thermostats, lighting controls
• 5G base station monitoring and control modules
• Automotive dashboard displays and control units
• IoT edge nodes and wireless sensor networks

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for STM32L152C8U6. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

STM32L152C8U6 是意法半導體（STMicroelectronics）推出的低功耗 ARM Cortex-M3 微控制器，屬於 STM32L1 系列。它配備 64KB Flash 存儲器、10KB SRAM，最高工作頻率為 32 MHz。器件採用緊湊的 48-UFQFPN（7x7 mm）封裝，適合空間受限的應用。它提供豐富的外設，包括 USB、LCD 驅動器、12 位 ADC、DAC、比較器以及多種通信接口（I2C、SPI、USART）。超低功耗（待機模式下低至 280 nA）使其非常適合電池供電的設備。

詳細技術參數

核心特性

• 超低功耗：待機（帶 RTC）280 nA，停止模式 1.1 μA
• 動態電壓調節以優化功耗
• 最高 32 MHz CPU 性能
• 內置 LCD 驅動器，支持最多 4x28 段
• USB 2.0 全速接口
• 12 位 ADC（16 通道），12 位 DAC（2 通道）
• 多種通信接口：I2C、SPI、USART
• 最多 37 個 GPIO
• 硬件 CRC、RTC 和篡改檢測
• 工作溫度：-40°C 至 +85°C

典型應用場景

STM32L152C8U6 適用於各種低功耗和便攜式應用，包括：

• 電池供電設備：智能電錶、便攜醫療設備（如血糖儀、脈搏血氧儀）
• 工業傳感器和執行器
• 消費電子：智能手錶、健身追踪器、遙控器
• 樓宇自動化：恆溫器、照明控制
• 5G 基站監控與控制模塊
• 汽車儀表盤顯示與控制單元
• 物聯網邊緣節點和無線傳感器網絡

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 STM32L152C8U6 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
