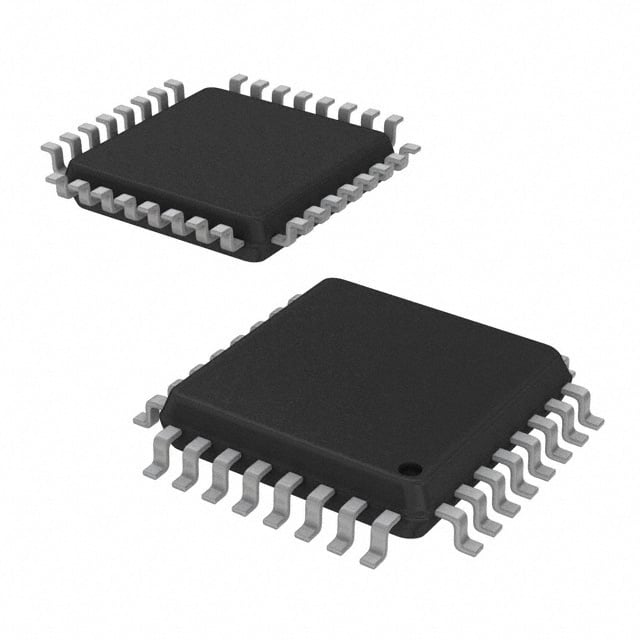

STM8AF6246TCSSSX ST Microcontroller | 32-LQFP (7x7) | 16MHz, 32KB Flash

Product Overview

The STM8AF6246TCSSSX is a high-performance 8-bit microcontroller from STMicroelectronics, part of the STM8A automotive family. It features an advanced STM8 core operating at up to 16 MHz, 32 KB of Flash program memory, 2 KB of RAM, and 1 KB of EEPROM. Housed in a compact 32-pin LQFP package (7x7 mm), this device is designed for automotive and industrial applications requiring robust performance, low power consumption, and high reliability. It operates over a wide temperature range (-40°C to +125°C) and includes a rich set of peripherals such as 10-bit ADC, timers, SPI, I2C, UART, and CAN interface.

Detailed Technical Specifications

Key Features

• High-performance STM8 core with Harvard architecture and 3-stage pipeline
• Up to 16 MIPS throughput at 16 MHz
• Embedded single-wire debug module (SWIM)
• Low power modes: Halt, Active-halt, Wait
• Integrated CAN 2.0B interface for automotive networking
• 10-bit ADC with analog watchdog
• Up to 28 general-purpose I/Os with programmable pull-ups
• Clock security system (CSS) for fail-safe operation
• Dual independent watchdogs (window and independent)
• Compliant with automotive grade AEC-Q100

Target Applications

The STM8AF6246TCSSSX is ideal for automotive and industrial applications requiring reliable control and communication. Specific examples include: automotive body control modules (e.g., window lift, seat control), dashboard instrument clusters, 5G base station power management units, industrial sensor interfaces, motor control for HVAC systems, battery management systems (BMS) for electric vehicles, and smart actuators in factory automation.

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for STM8AF6246TCSSSX. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
