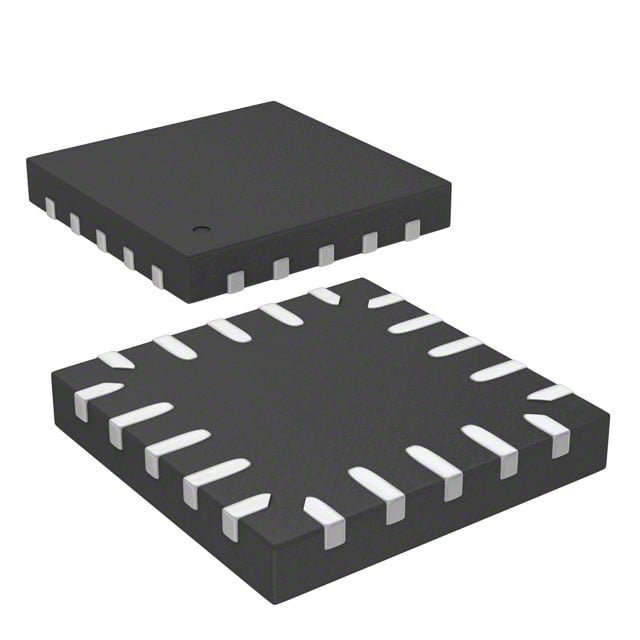

STM8L101F2U6ATR ST Microcontrollers | 20-UFQFPN（3X3） | 8-bit, 2KB Flash, 1KB RAM

Product Overview

The STM8L101F2U6ATR is an ultra-low-power 8-bit microcontroller from STMicroelectronics, part of the STM8L101xx family. It features an advanced STM8 core with a 16 MHz CPU clock, 2 KB of Flash program memory, and 1 KB of RAM. Housed in a compact 20-UFQFPN (3x3 mm) package, it is ideal for space-constrained and battery-powered applications. The device operates over a supply voltage range of 1.8V to 3.6V and offers multiple low-power modes, including Active-Halt and Halt, with typical consumption as low as 0.3 µA in Halt mode.

Detailed Technical Specifications

Key Features

• Ultra-low-power consumption: 0.3 µA in Halt mode, 1 µA in Active-Halt mode
• Fast wake-up from low-power modes (less than 5 µs)
• Embedded single-wire debug module (SWIM)
• Up to 18 I/Os with programmable pull-up and interrupt capability
• Integrated 12-bit ADC with up to 4 channels
• Communication interfaces: SPI, I2C, UART
• Two timers: 16-bit and 8-bit
• Clock sources: Internal 16 MHz RC, external crystal, or resonator
• Reset circuitry: Power-on reset (POR), power-down reset (PDR), brown-out reset (BOR)
• Compact 3x3 mm package for space-constrained designs

Target Applications

The STM8L101F2U6ATR is designed for a wide range of low-power and cost-sensitive applications, including:

• Portable medical devices (e.g., blood glucose meters, thermometers)
• Smart sensors and IoT endpoints (e.g., temperature/humidity sensors, motion detectors)
• Battery-powered consumer electronics (e.g., remote controls, smart watches, fitness trackers)
• Industrial control and automation (e.g., sensor nodes, actuator controllers)
• Automotive body electronics (e.g., window lift, seat control modules)
• 5G base station monitoring and control (e.g., power management, environmental sensors)
• Smart home devices (e.g., smart locks, thermostats, lighting controllers)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for STM8L101F2U6ATR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
