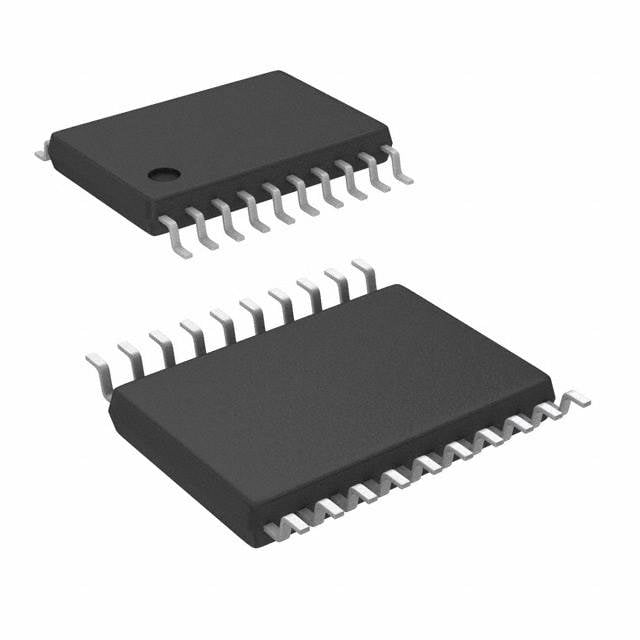

STM8L101F3P6 ST MCU | 20-TSSOP | 8-bit, 8KB Flash, 1.5KB RAM

Product Overview

The STM8L101F3P6 is an ultra-low-power 8-bit microcontroller from STMicroelectronics, part of the STM8L101xx family. It features an advanced STM8 core with a Harvard architecture and a 3-stage pipeline, operating at up to 16 MHz. The device is housed in a compact 20-pin TSSOP package, making it ideal for space-constrained applications. With 8 KB of Flash program memory, 1.5 KB of RAM, and 128 bytes of EEPROM, it offers a balanced set of resources for low-power embedded designs.

Detailed Technical Specifications

Key Features

• Ultra-low-power consumption: 0.35 µA in Halt mode, 1 µA in Active-halt mode
• Fast wake-up from Halt mode (4.7 µs)
• Embedded single-wire debug module (SWIM)
• Clock sources: Internal 16 MHz RC, 38 kHz low-power RC, external crystal
• Reset circuit with power-on reset (POR) and brownout reset (BOR)
• Up to 18 I/Os, all with interrupt capability
• Dual watchdog: Window and independent

Target Applications

The STM8L101F3P6 is suitable for a wide range of low-power applications, including:

• Portable medical devices (e.g., blood glucose meters, thermometers)
• Smart sensors and IoT edge nodes (e.g., temperature/humidity sensors)
• Consumer electronics (e.g., remote controls, toys)
• Industrial control (e.g., simple motor control, lighting systems)
• Automotive body electronics (e.g., seat control modules, window lifts)
• 5G base station monitoring (e.g., environmental sensors)
• Dashboard control units in vehicles

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for STM8L101F3P6. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
